Panduit Pan-Lug LCMA70-10F-L Copper Compression Connectors - Metric Lugs
Panduit #:LCMA70-10F-L
SKU: PANDLCMA70-10F-L
UPC: 749838047190
SKU: PANDLCMA70-10F-L
UPC: 749838047190
Your Price: $11.27 / EA
Panduit Pan-Lug LCMA70-10F-L Copper Compression Connectors - Metric Lugs
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Pan-Lug LCMA70-10F-L Copper Compression
Specification Sheet
Detailed Description

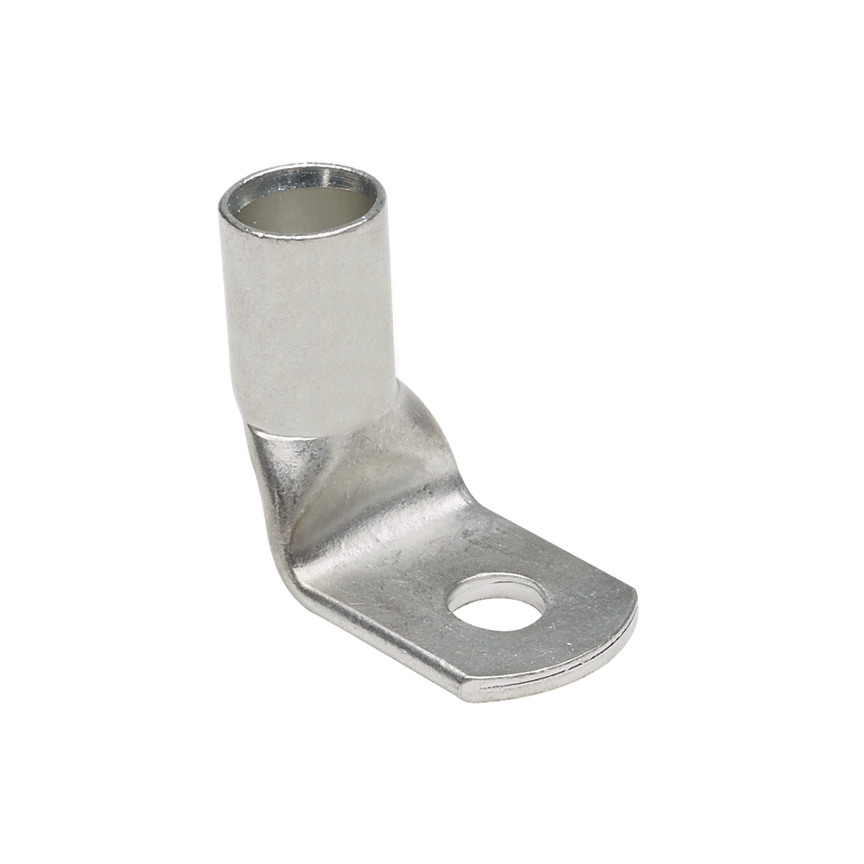

One-hole, metric conductor, standard barrel with window lug, 70mm 2r, 50mm class 5f/6f, M10 stud hole, 90 angle tongue.
| Material: | Tin-Plated Copper |
| Special Features: | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Amperage Rating: | NA A |
| Number Of Holes: | NA |
| Standard: | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Voltage Rating: | NA V |
| Type: | Metric Compression Lug |
