Morris Products, Inc Non-Insul Ring Terminals 8awg Wire, #8Sd
Morris Products, Inc #:11078
SKU: MORR11078
UPC: 601986110785
SKU: MORR11078
UPC: 601986110785
Your Price: $0.52 / EA
Morris Products, Inc Non-Insul Ring Terminals 8awg Wire, #8Sd
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Non-Insul Ring Terminals 8awg Wire, #8Sd
Specification Sheet
Detailed Description

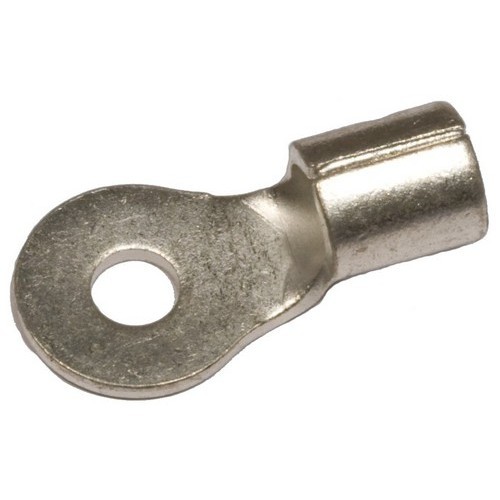

Non-Insulated Ring Terminals - 8awg Wire, #8 Stud - Non-Insulated Wiring Terminals for electrical work.Non-Insulated Ring Terminals - 8awg Wire, #8 Stud features include: Non-Insulated Ring Terminal Material: High Strength Electro-Tin Plated Copper Brazed Seam Serrated Barrel with Brazed Seam provides Excellent Electrical Contact resistance to pull-out forces Maximum Electrical Current: 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp, 8 AWG - 70 Amp, 6 AWG - 95 Amp, 4 AWG - 125 Amp, 2 AWG - 170 Amp 302deg;F(150deg;C) 600 Volts Max cULus Listed Dimension Measurements = Inches Order Qty of 100 = 1 Bag of 100 Below is more info on our Non-Insulated Ring Terminals - 8awg Wire, #8 Stud
| Material: | Copper |
| Wire Size: | 8 |
