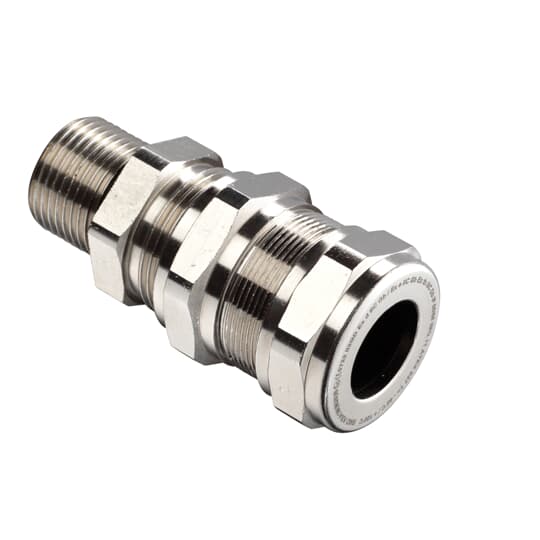

Thomas & Betts M75 N/p Brass D/c Gland 40-52mm
Thomas & Betts #:EXN10MSC1
SKU: ABBIEXN10MSC1
UPC: 786210194936
SKU: ABBIEXN10MSC1
UPC: 786210194936
Your Price: $1,096.69 / EA
Thomas & Betts M75 N/p Brass D/c Gland 40-52mm
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Double Compression Cable Gland, M75 Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 40 to 52mm, Outer Cable Range 47 to 60mm, Nickel Plated Brass
| Special Features: | Designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and pieces |
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Size: | M75 |
| Material: | Brass |
| Finish: | Nickel Plated |
| Color: | Metallic |
| Application: | For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries |
| Environmental Conditions: | Flameproof Ex d and Increased Safety Ex e, Suitable for Zones 1, 2, 21, 22 |
| Standard: | UL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31 |
| Type: | Double Compression Gland |
| Insulation: | IP66 Rating |
| Temperature Rating: | -40 to 100 C |
| Conductor Range: | Inner 40 to 52mm, Outer 47 to 60mm |
