Your Price: $26.45 / EA
Leviton IV COMBI DEC SW SP/REC 2PO 3WI 15A125V.
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product IV COMBI DEC SW SP/REC 2PO 3WI 15A125V.
Specification Sheet
Detailed Description

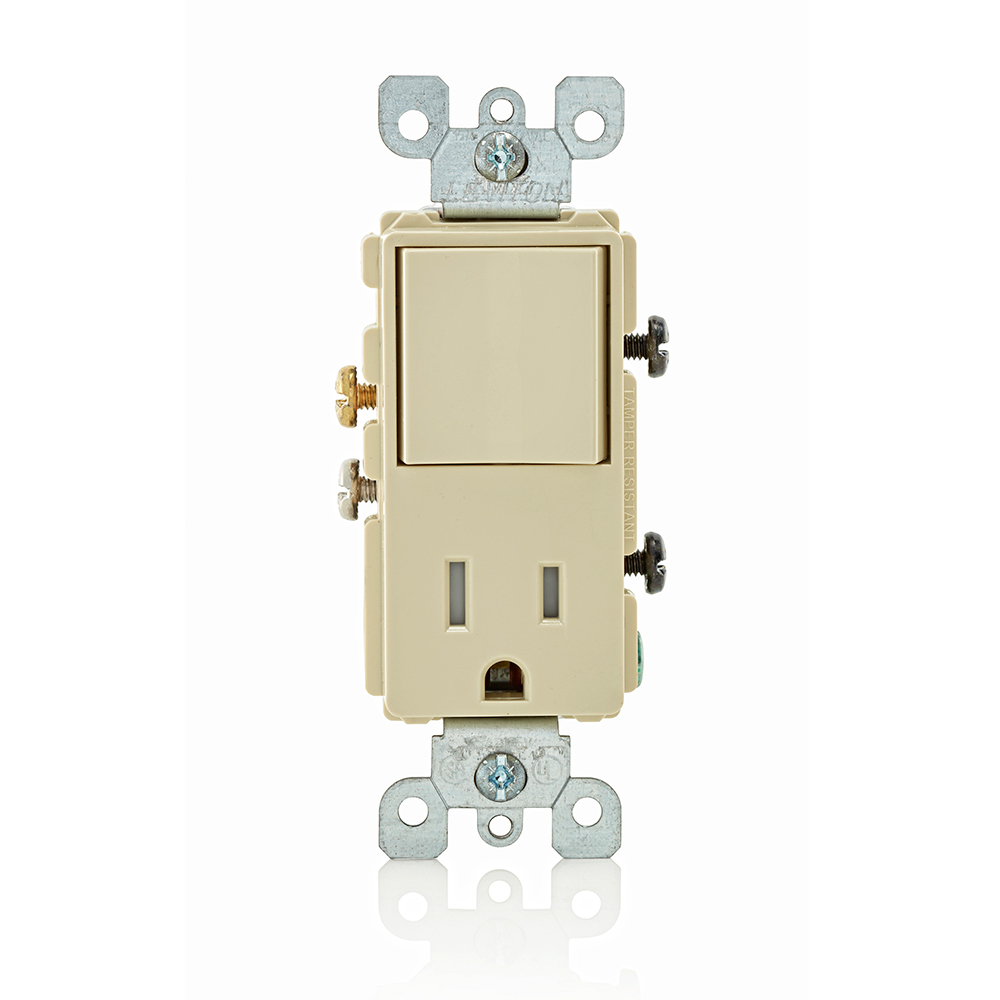

15-Amp 120-Volt Decora Style Single-Pole / 5-15R AC Combination Switch, Ivory
| Actuator: | Rocker |
| Amperage Rating: | 15 (Switch);20 (Device) AMP |
| Application: | Commercial |
| Connection: | Side Wired |
| Contact Rating: | 120 VAC (Switch);125 V (Receptacle);15 AMP (Switch);20 AMP (Device) |
| Environmental Conditions: | Flammability (Rated UL 94 V-2) |
| Mounting: | Wallplate |
| Number Of Poles: | 1 |
| Operating Temperature: | -40 to +120 DEG C |
| Size: | 4.20 H x 1.31 W x 0.93 D IN |
| Special Features: | Elegant Decora Styling Provides Multiple Control in a Single Gang Wallbox, Impact Resistant, Common Shunted Internally to all Switches, Limited Two Year Warranty, Grounding, Made in Mexico |
| Standard: | UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057) |
| Type: | Switch With Receptacle |
| Voltage Rating: | 120 VAC (Switch);125 V (Receptacle) |
