Your Price: $0.00

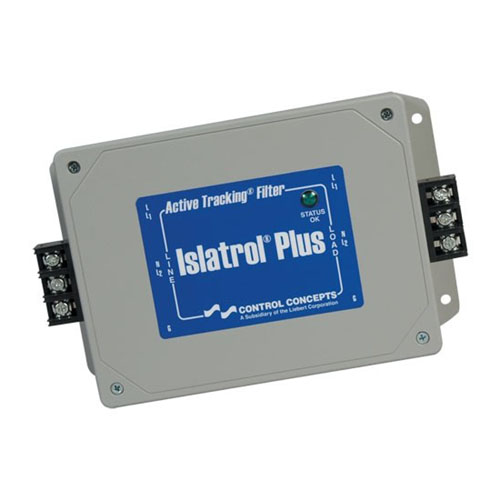

ISLATRL+ 1PH 7.5A 240VAC R0HS
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product ISLATRL+ 1PH 7.5A 240VAC R0HS
Specification Sheet
Warranty
| Operating Temperature: | -40 DEG C to +45 DEG C at Full Load; Derate Linearly to 60% at +70 DEG C |
| Size: | 4.75 Length x 4.75 Width x 2.35 High IN |
| Voltage Rating: | 240 Volt/275 VRMS |
| Environmental Conditions: | Humidity: 0 to 95% |
| Response Time: | Normal Mode |
| Frequency Rating: | 47-63 HZ |
| Material: | High Impact Plastic Case, Vacuum Impregnated Magnetics, Epoxy Encapsulated |
| Short Circuit Rating: | Surge current capacity -- 45,000 Amps |
| Application: | Industrial or office equipment, computers placed in harsh environments. |
| Connection: | Barrier strip at input and output/with wire leads at input and output |
| Standard: | UL 1283, CSA Recognized |
| Type: | Islatrol IC+ Series |
| Type of Indicators: | LED Power Indicators |
| Special Features: | Reduces normal mode transients to +/-2 volts; Surge current capacity - 45,000 Amps; Transient protection in all modes: line to neutral, line to ground, and neutral to ground; LED power indication |
| Amperage Rating: | 5 AMPS |
| Mounting: | Flange Dimensions: 5.25 x 3.50 x 6.25 x 0.19 IN |
| Class: | Category B Ringwave (6kv, 500 A, 100 kHz) |
