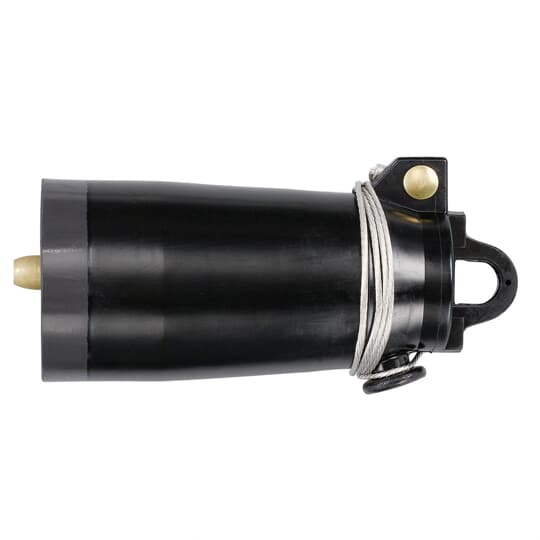

Thomas & Betts Insulated Cap W/grnd,cuff W/o Probe
Thomas & Betts #:273DRGA
SKU: ABBI273DRGA
UPC: 783786640782
SKU: ABBI273DRGA
UPC: 783786640782
Your Price: $77.78 / EA
Thomas & Betts Insulated Cap W/grnd,cuff W/o Probe
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe. White Band
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Diameter 2.90 inch (73.7mm) |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Voltage Rating: | 25 kV |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Type: | Loadbreak Insulated Cap |
| Application: | Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation |
| Special Features: | 25kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection |
