Your Price: $508.84 / EA
Burndy GROUND CLAMP FOR H BEAM
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product GROUND CLAMP FOR H BEAM
Specification Sheet
Detailed Description

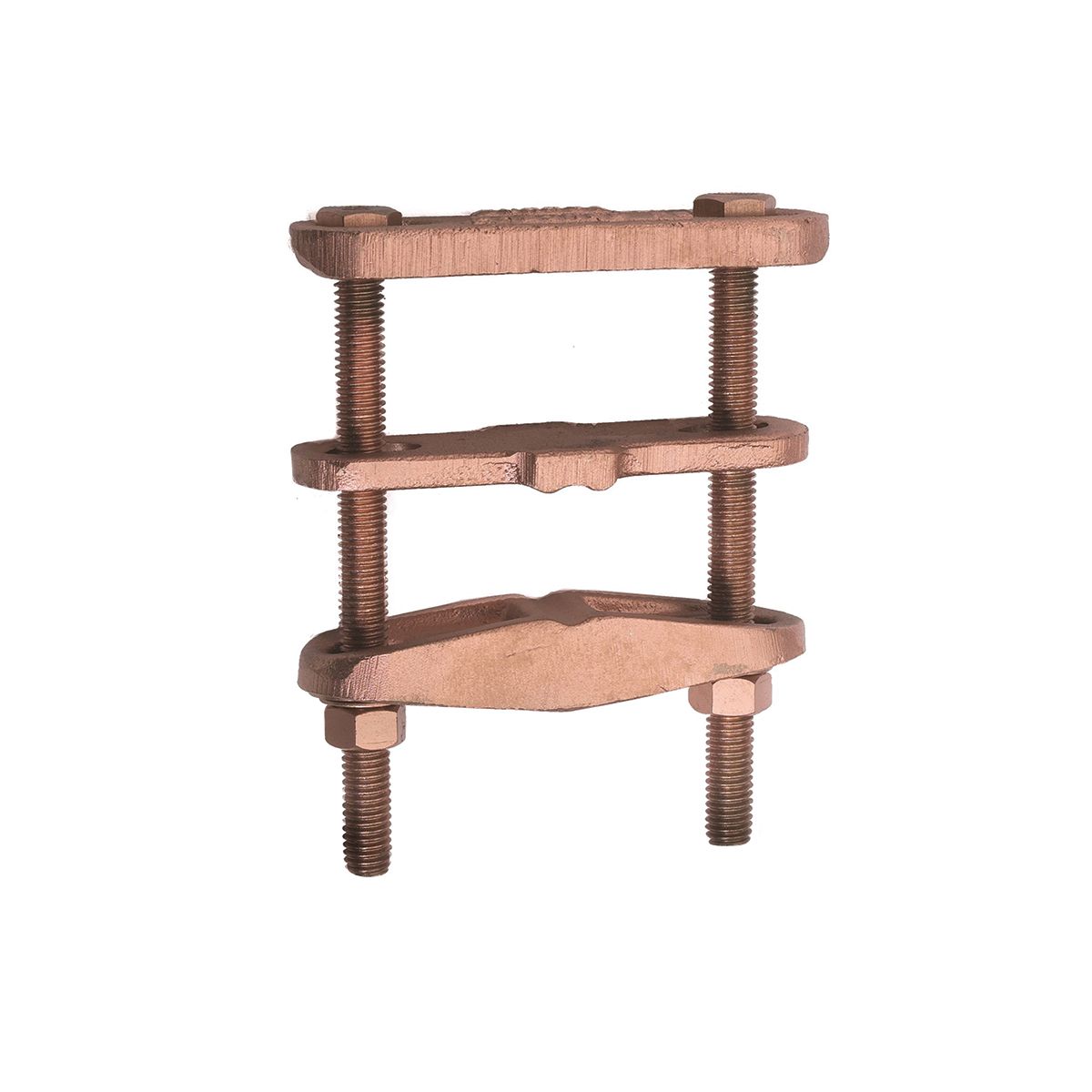

Mechanical Ground Connector for Copper Cable to "H" Beam; Accommodates: "H" Beam 1-7/8" - 2-1/2" x 2-1/2"; #4 Solid - 2/0 Stranded Copper
| Product Type: | Mechanical |
| Dimension - Width mm: | 102 mm |
| Installation Torque Recommended Run in-lb: | 240 Lb in |
| Dimension - Height inch: | 4.75 in |
| Application: | For Joining A Wide Range Of Copper Cable Parallel To H Beams Or Square Tube |
| Material: | Copper |
| Type: | GA-H |
| Special Features: | Features: High Copper Alloy Ground Connector For Joining A Wide Range Of Cable Parallel To H Beams Or Square Tube, Hardware Is Made From DURIUM For Superior Corrosion Protection, Width: 4 IN, Installation Torque: 240 IN-LB, Outer Dimension Of H Beam Or Tu |
