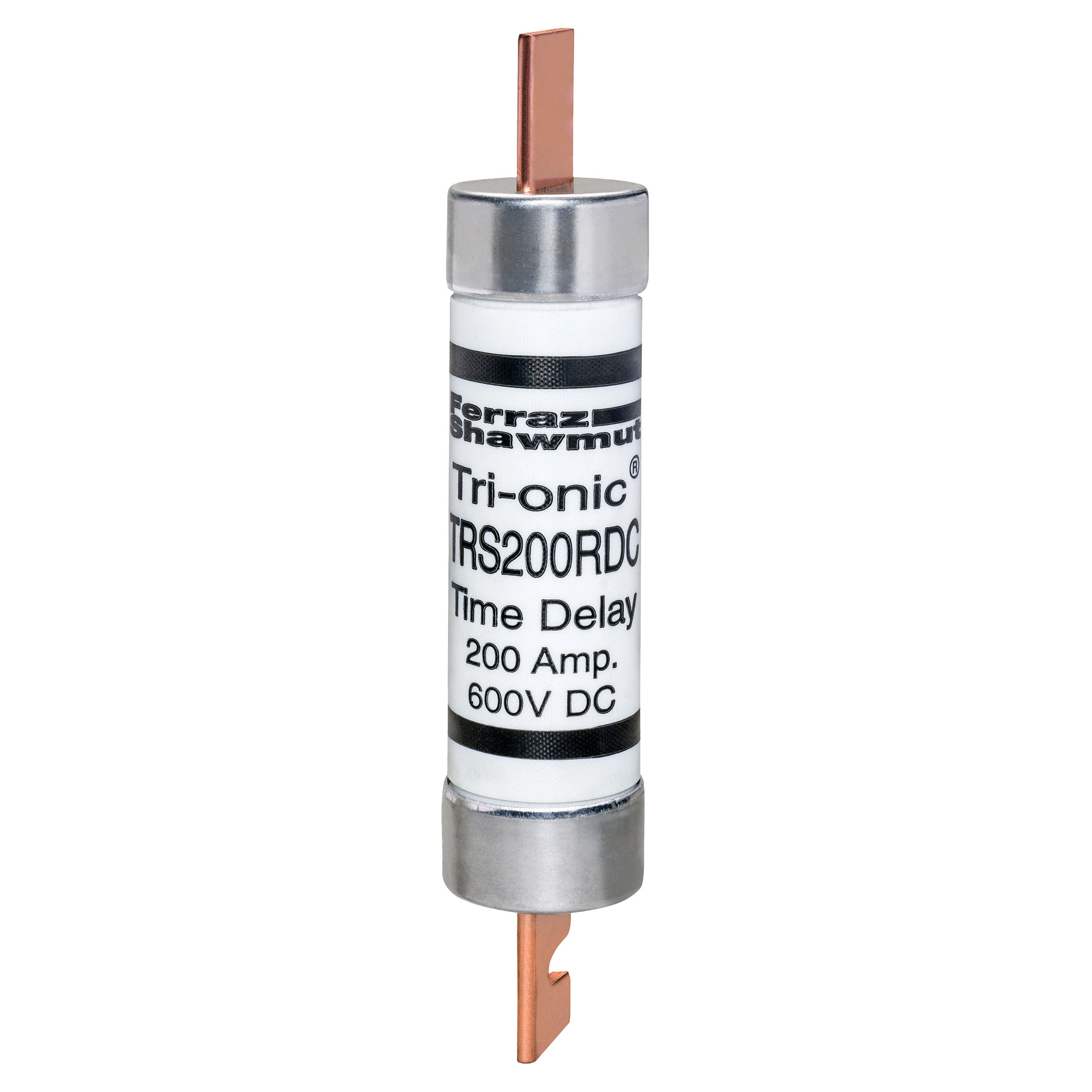

Mersen Fuse TRS-RDC - Class RK5 - Time-Delay 600VDC 200A Blade
Mersen #:TRS200RDC
SKU: MERSTRS200RDC
UPC: 782001748913
SKU: MERSTRS200RDC
UPC: 782001748913
Your Price: $102.59 / EA
Mersen Fuse TRS-RDC - Class RK5 - Time-Delay 600VDC 200A Blade
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Fuse TRS-RDC - Class RK5 - Time-Delay 60
Specification Sheet
Detailed Description
Fuse TRS-RDC - Class RK5 - Time-Delay 600VDC 200A Blade Tri-Onic
| Body Material: | GMG |
| Connection Material: | Tin-Plated Copper |
| Connection: | Blade |
| Application: | Mine circuits Trailing cables Pump motors Rail heaters |
| Class: | Class RK5 |
| Interrupt Rating: | 20 kA |
| Mounting: | Clip |
| Special Features: | DC rated for mine duty and other long time-constant applications Time-delay for motor start-ups and high inrush loads without nuisance opening Rugged glass melamine body for superior reliability in harsh environments |
| Standard: | MSHA approval no. 28-26-0 |
| Type: | Class RK5 |
| Amperage Rating: | 200 A |
| Voltage Rating: | 600 VDC |
| Size: | 9.63 x 1.81 in |
