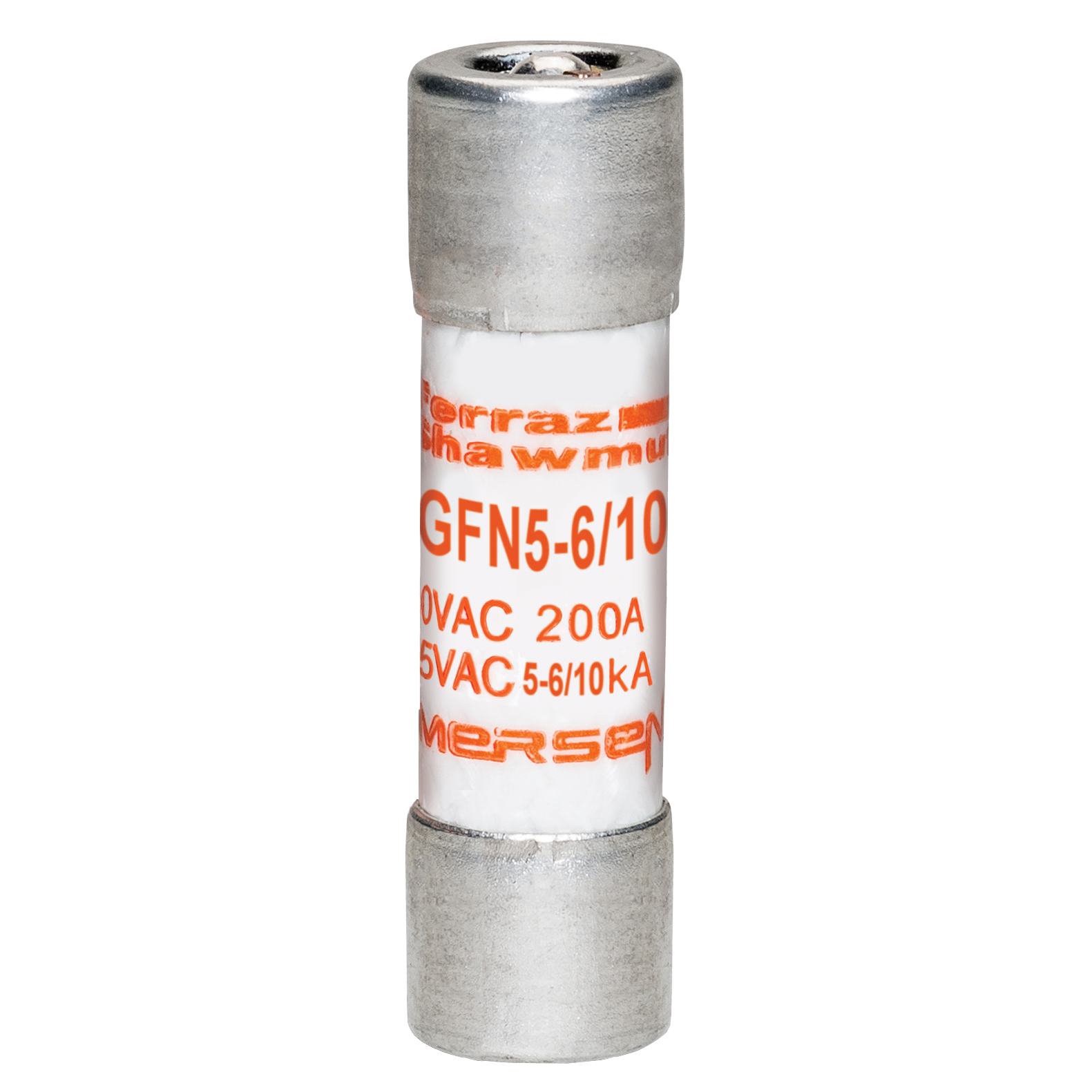

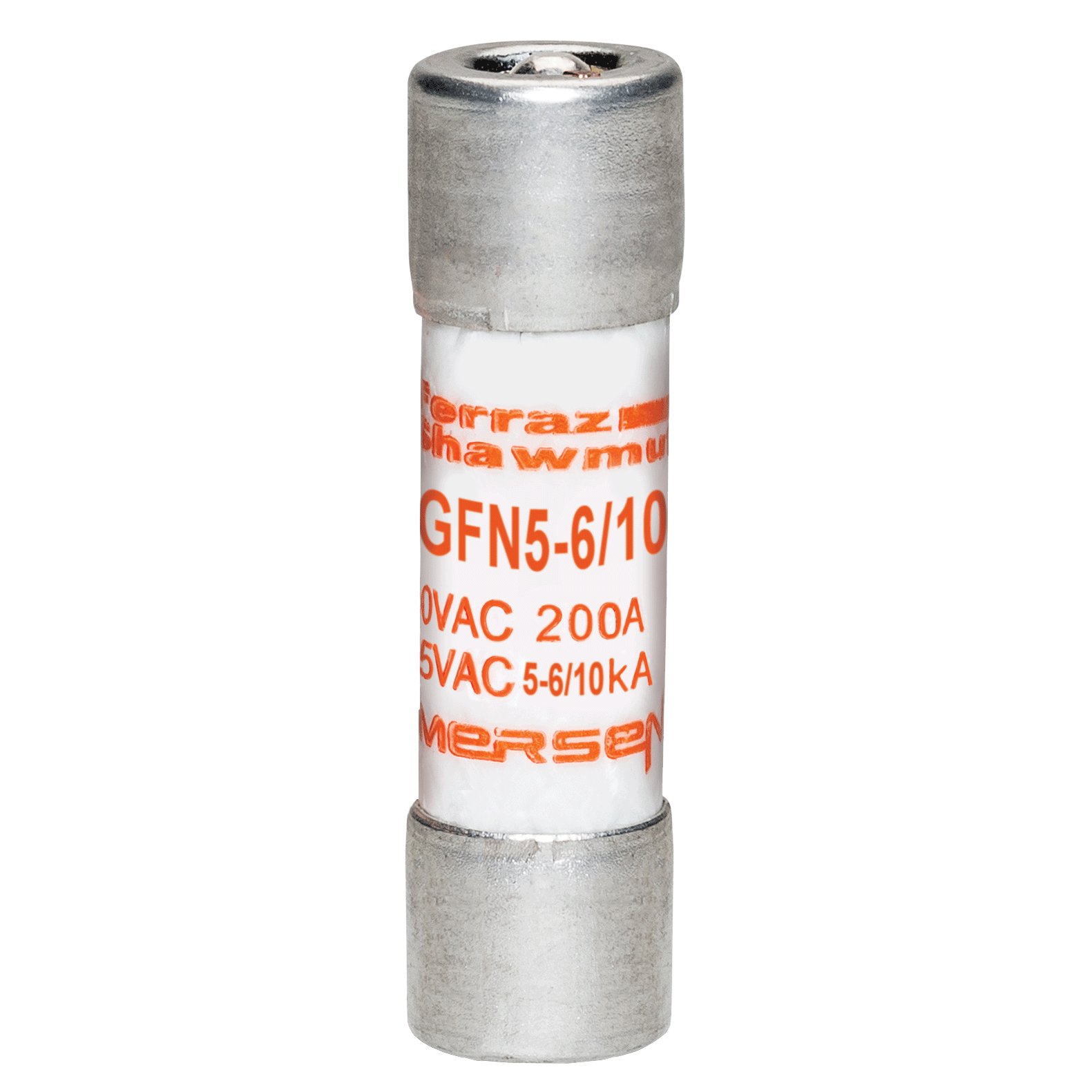

Mersen Fuse GFN - Midget - Time-Delay 250VAC 5.6A Ferrule Visual Indicator
Mersen #:GFN5-6/10
SKU: MERSGFN5-6/10
UPC: 782001764708
SKU: MERSGFN5-6/10
UPC: 782001764708
Your Price: $21.66 / EA
Mersen Fuse GFN - Midget - Time-Delay 250VAC 5.6A Ferrule Visual Indicator
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Fuse GFN - Midget - Time-Delay 250VAC 5.
Specification Sheet
Detailed Description
Fuse GFN - Midget - Time-Delay 250VAC 5.6A Ferrule Visual Indicator
| Connection Material: | Tin-Plated Copper |
| AC Voltage Rating: | 250 V |
| Body Material: | PolyTube |
| Class: | Midget |
| Connection: | Ferrule |
| Mounting: | Clip |
| Type: | Midget Fuses |
| Voltage Rating: | 250 VAC |
| Application: | For supplemental protection of circuits where time-delay and blown fuse indication are required, such as solenoid circuits or control circuits. |
| Interrupt Rating: | 0.2 kA |
| Size: | 1.5 x 0.41 in |
| Special Features: | Pin indicator provides visual indication of open fuse or actuates switch for remote signaling Numerous ratings for a wide variety of applications 12 second time-delay at 200 rating Can be used with UltraSafe fuse holders (1/10 - 10A) 1 1/2" x 13/32" (10 m |
| Standard: | UL Listed to standard 248-14 (1/10 to 15A) File E33925 CSA Certified to Standard C22.2 No. 248.14 (1/10 to 15A) |
| Type Of Indicators: | Visual Indicator |
| Amperage Rating: | 5.6 A |
