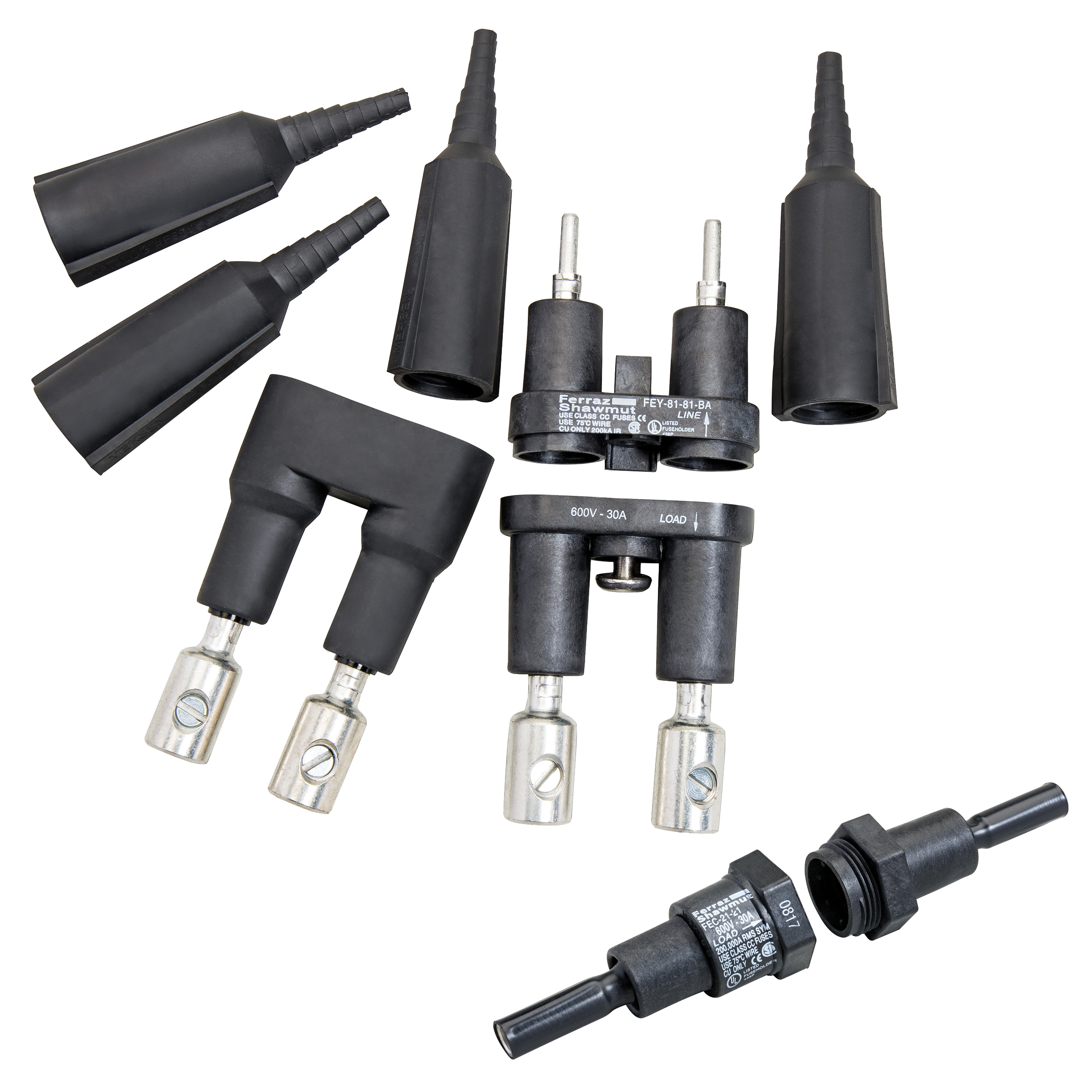

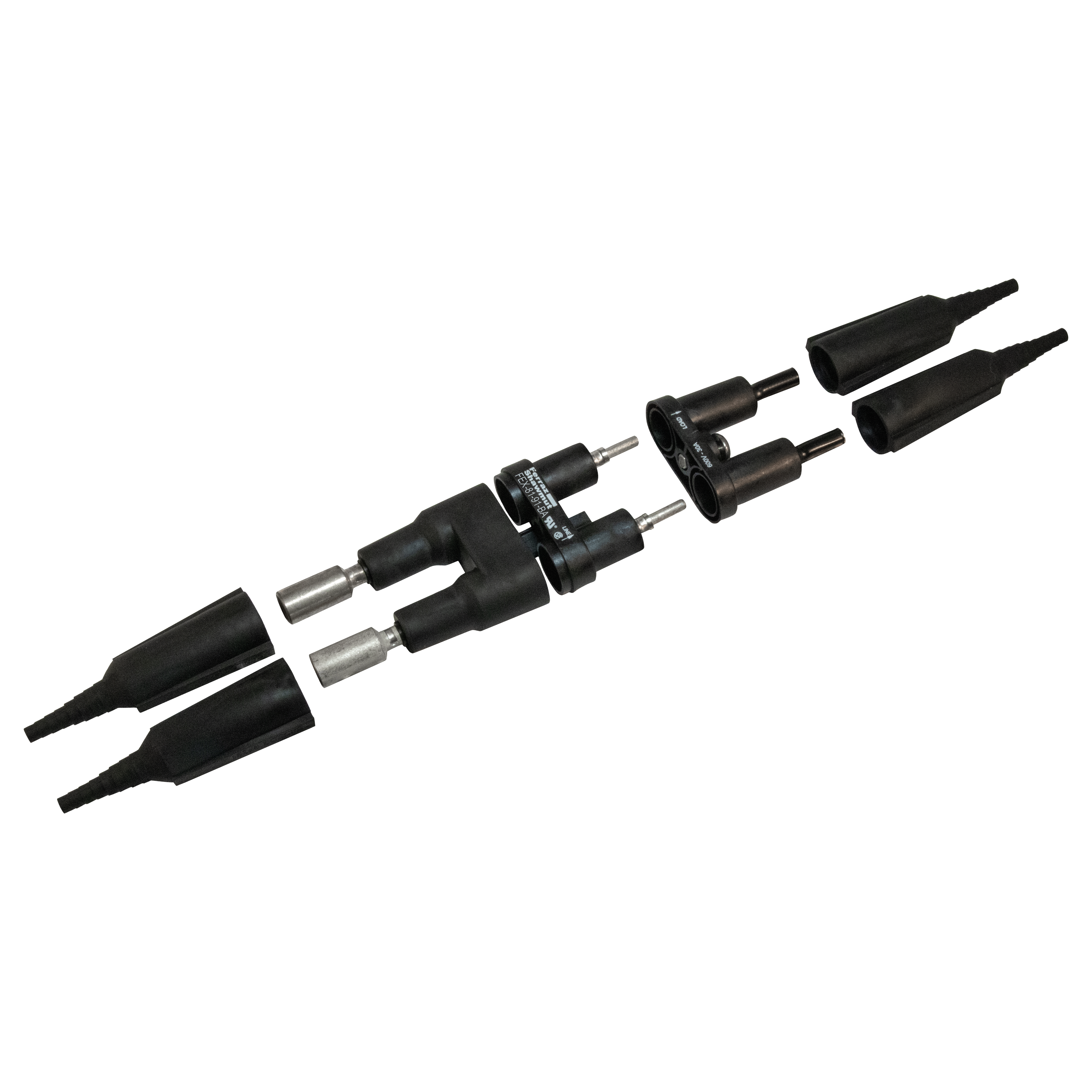

Mersen Fuse Block 600VAC/DC Midget 30A 2Pole 81-91-BA Single Set Screw/Double Set Screw

Mersen #:FEX-81-91-BA
SKU: MERSFEX-81-91-BA
UPC: 782001301316

Your Price: $284.55 / EA

Add to List

If you would like to purchase a large amount and would like a custom quote, you can add build a quote

Ask about this product

Fuse Block 600VAC/DC Midget 30A 2Pole 81

Detailed Description

Fuse Block 600VAC 600VDC Midget 30A 2-Pole 81-91-BA Single Set Screw / Double Set Screw

AC Voltage Rating:	600 V
DC Voltage Rating:	600 V
Maximum Operating Temperature:	80 C
Size:	5.8 x 2.96 x 1 in
Amperage Rating:	30 A
Application:	Street lighting Parking lot lighting Traffic signaling Sports lighting Boats and marinas Humid/corrosive environments
Class:	Midget
Special Features:	Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards 3 O-rings per pole for water tight applications Colored O-rings for quick detection Single and dual poles Accepts midge
Standard:	UL Listed Class CC Guide IZLT, File E52283 UL Recognized Component Midget Guide IZLT2, File E52283 CSA Certified Class CC and Midget Class 6225, File 32169
Voltage Rating:	600
Material:	Polyethylene
Mounting:	In-Line
Type:	UL/CSA Fuse Bases
Connection:	Single Set Screw / Double Set Screw
Phase:	2
Number Of Poles:	2-pole
