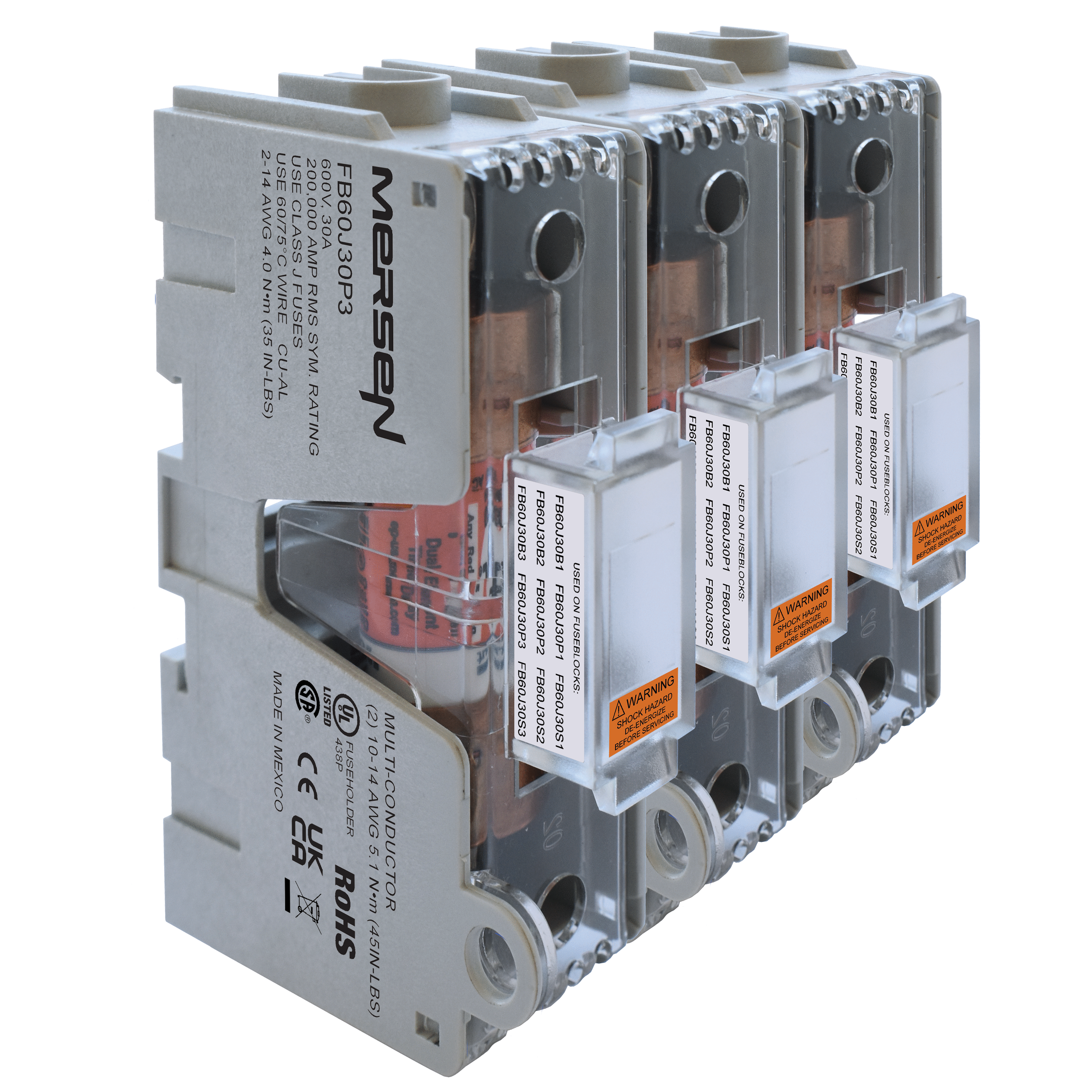

Mersen Fuse Block 600VAC 600VDC Class J 30A 3-Pole Pressure Plate
Mersen #:FB60J30P3
SKU: MERSFB60J30P3
UPC: 782001505141
SKU: MERSFB60J30P3
UPC: 782001505141
Your Price: $77.36 / EA
Save 20%
Mersen Fuse Block 600VAC 600VDC Class J 30A 3-Pole Pressure Plate
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Fuse Block 600VAC 600VDC Class J 30A 3-P
Specification Sheet
Detailed Description
Fuse Block 600VAC 600VDC Class J 30A 3-Pole Pressure Plate
| Maximum Operating Temperature: | 80 C |
| AC Voltage Rating: | 600 V |
| DC Voltage Rating: | 600 V |
| Amperage Rating: | 30 A |
| Material: | Glass Filled Polycarbonate |
| Mounting: | Direct Screw Mount |
| Type: | UL/CSA Fuse Bases |
| Class: | Class J |
| Standard: | All class J fuse blocks meet the requirements of UL4248 (formerly UL512) UL listed Guide IZLT, File E52283 CSA certified class 6225, File 32169 |
| Connection: | Pressure Plate |
| Application: | Branch circuits Control panels Load centers Lighting, heating, & general loads |
| Special Features: | DIN-rail mountable, 600V, 30-100A fuse bases 30A is available with box, screw, and pressure plate terminations 60A & 100A is available with box only Fresh new Mersen gray color for fuse base Dovetail design for interlocking configuration of 2-pole and 3-p |
| Number Of Poles: | 3 |
| Size: | 4.15 x 3.54 x 2.51 in |
