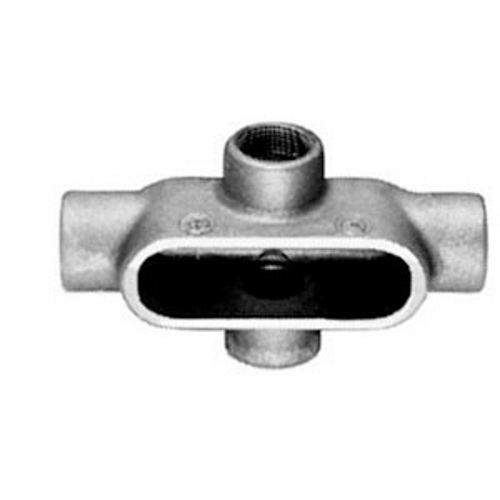

Appleton Electric FM7 UNILETS Type X Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 5.63 IN, Width: 3.31 IN, Height: 1-3/4 IN, Material: Grayloy-Iron, Finish: ...
Appleton Electric #:X17
SKU: APPLX17
UPC: 781381507332
SKU: APPLX17
UPC: 781381507332
Your Price: $25.59 / EA
Appleton Electric FM7 UNILETS Type X Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 5.63 IN, Width: 3.31 IN, Height: 1-3/4 IN, Material: Grayloy-Iron, Finish: ...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/2 FM7 BODY
Specification Sheet
Warranty
Detailed Description
FM7 UNILETS Type X Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 5.63 IN, Width: 3.31 IN, Height: 1-3/4 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Ta
| Connection: | Tapered Female Threaded |
| Color: | Gray |
| Hub Size: | 1/2 |
| Height: | 1-3/4 IN |
| Form: | 7 |
| Standard: | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Finish: | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs |
| Application: | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Material: | Grayloy-Iron |
| Length: | 5.63 in |
| Type: | Type X Conduit Outlet Body |
| Width: | 3.31 in |
