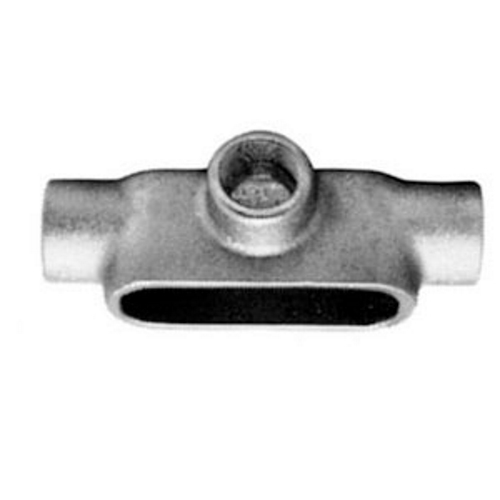

Appleton Electric FM7 UNILETS Type T Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 5.63 IN, Width: 2.44 IN, Height: 1-3/4 IN, Material: Aluminum, Finish: Epox...
Appleton Electric #:T17SA
SKU: APPLT17SA
UPC: 781381600972
SKU: APPLT17SA
UPC: 781381600972
Your Price: $27.32 / EA
Appleton Electric FM7 UNILETS Type T Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 5.63 IN, Width: 2.44 IN, Height: 1-3/4 IN, Material: Aluminum, Finish: Epox...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/2 FM7 BODY TYPE T - ALUM
Specification Sheet
Warranty
Detailed Description
FM7 UNILETS Type T Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 5.63 IN, Width: 2.44 IN, Height: 1-3/4 IN, Material: Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Nu
| Connection: | Tapered Female Threaded |
| Hub Size: | 1/2 |
| Material: | Aluminum |
| Height: | 1-3/4 IN |
| Form: | 7 |
| Finish: | Epoxy Powder Coat |
| Standard: | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs |
| Application: | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Width: | 2.44 in |
| Length: | 5.63 in |
| Type: | Type T Conduit Outlet Body |
