Panduit FIBERRUNNER TRAPEZE, FOR 12X4 SYSTEM, BLACK
Panduit #:FR12TB12M
SKU: PANDFR12TB12M
UPC: 749838474712
SKU: PANDFR12TB12M
UPC: 749838474712
Your Price: $4.93 / EA
Panduit FIBERRUNNER TRAPEZE, FOR 12X4 SYSTEM, BLACK
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product FIBERRUNNER TRAPEZE, FOR 12X4 SYSTEM,
Specification Sheet
Detailed Description

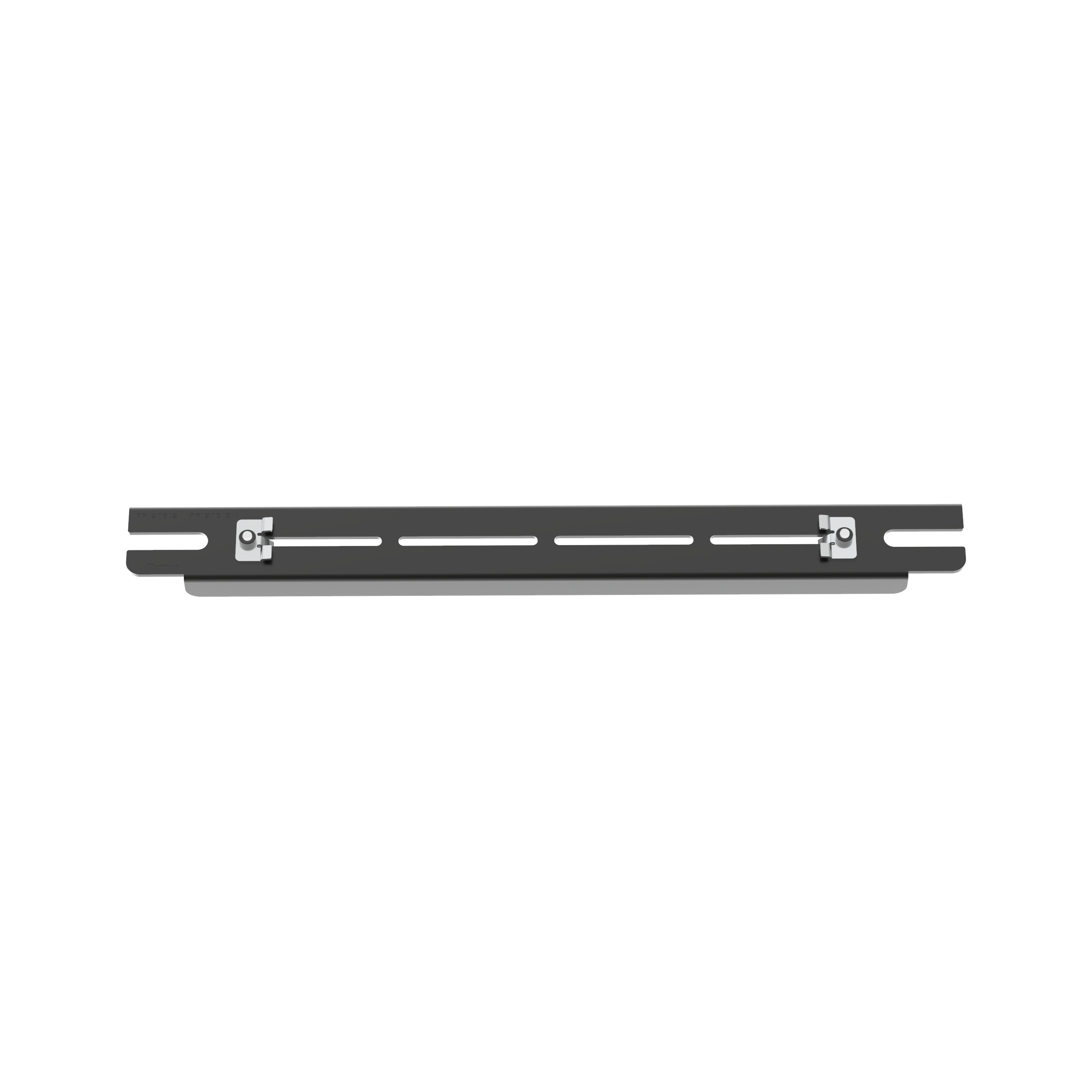

The FiberRunner QuikLock Trapeze Bracket is used to support the 12x4 system by spanning two threaded rod drops that are 18 inches apart. It can be installed from above or below. It is used for a 0.5 inch threaded rod. The trapeze bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to the channel.
| Color*: | Black |
| Standard: | UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| Application: | (1) The Fiberrunner 12X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling, (2) It is Suited for Data Center Applicationswhere Cable is Routed from Distr |
| Length: | 21.52 In. |
| Type: | Trapeze Bracket |
| Material: | Steel |
