Panduit FiberRunner Trapeze Bracket, 12x4
Panduit #:FR12TB2412N
SKU: PANDFR12TB2412N
UPC: 613056813762
SKU: PANDFR12TB2412N
UPC: 613056813762
Your Price: $113.71 / EA
Panduit FiberRunner Trapeze Bracket, 12x4
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product FiberRunner Trapeze Bracket, 12x4
Detailed Description

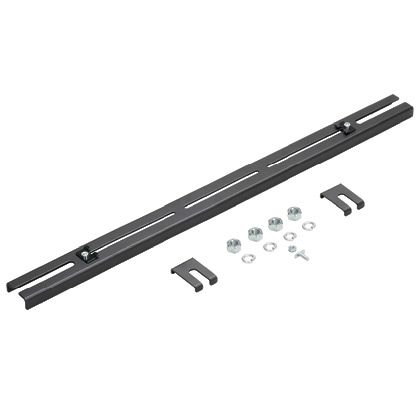

The FiberRunner QuikLock Trapeze Bracket is used to support the 12x4 system by spanning two threaded rod drops that are 24 inches apart. Ideal for supporting trapeze bracket from 24-inch wide ladder rack or 24in wide cable tray. Can be installed from above or below. Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16-inch nut driver on slide clamps, for 1/2-inch or 12mm threaded rod.
| Material: | Steel |
| Height: | 0.86 In. |
| Type: | Trapeze Bracket |
| Width: | 2.19 In. |
| Length: | 32 In. |
| Cable Specification: | FiberRunner brackets |
| Application: | The FiberRunner routing system consists of channels, covers, fittings, brackets and hardware. It is designed to segregate, route and protect fiber optic and high performance copper cabling, specifically in data center applications. |
| Finish: | Powder-Coated |
