Thomas & Betts Exj -extra-flexible, 90 Degree Bend
Thomas & Betts #:EXJ360A3279140
SKU: ABBIEXJ360A3279140
UPC: 075114306201
SKU: ABBIEXJ360A3279140
UPC: 075114306201
Your Price: $1,409.25 / EA
Thomas & Betts Exj -extra-flexible, 90 Degree Bend
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Tinned Copper, 90 Degree Extra Flexible Braid Connector, EXJ Series, 4-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 11 inch (279 mm) high x 5.5 inch (140 mm) long, 3-1/4 inch (83 mm) wide, 1 inch (25.4 mm) thick. Pad 3-1/4 inch x 3-5/8 inch. 26 Braids in Assembly. 36 AWG Individual Strand.
| Conductor Category: | Flexible |
| Conductor Material: | Tin-Plated Copper |
| Shape Of Conductor: | Flat |

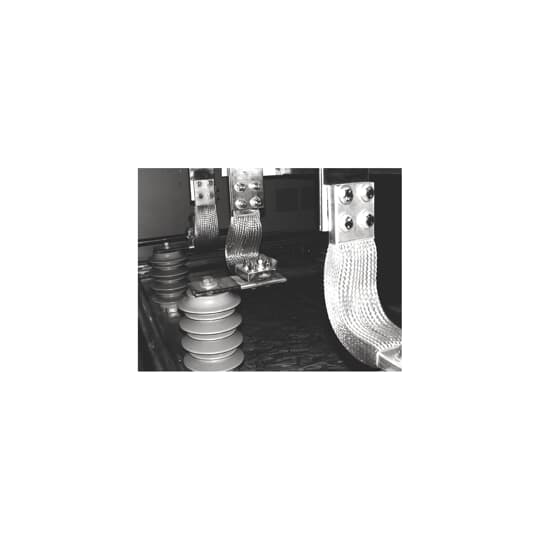

| Application: | Suitable wherever it is necessary to take up expansion, severe vibration and/or misalignment when connecting Transformers, Switchgear, Generators or Busbars |
| Standard: | IEEE/ANSI C37.34 |
| Type: | Extra Flexible Braid Connector - 4-Hole - 90 Degree |
| Special Features: | Extra Flexible Braid, 4-Hole NEMA Pad, 90 Degree Bend |
| Cable Width: | 3-1/4 in , 83 mm |
| Cable Length: | 11 in |
