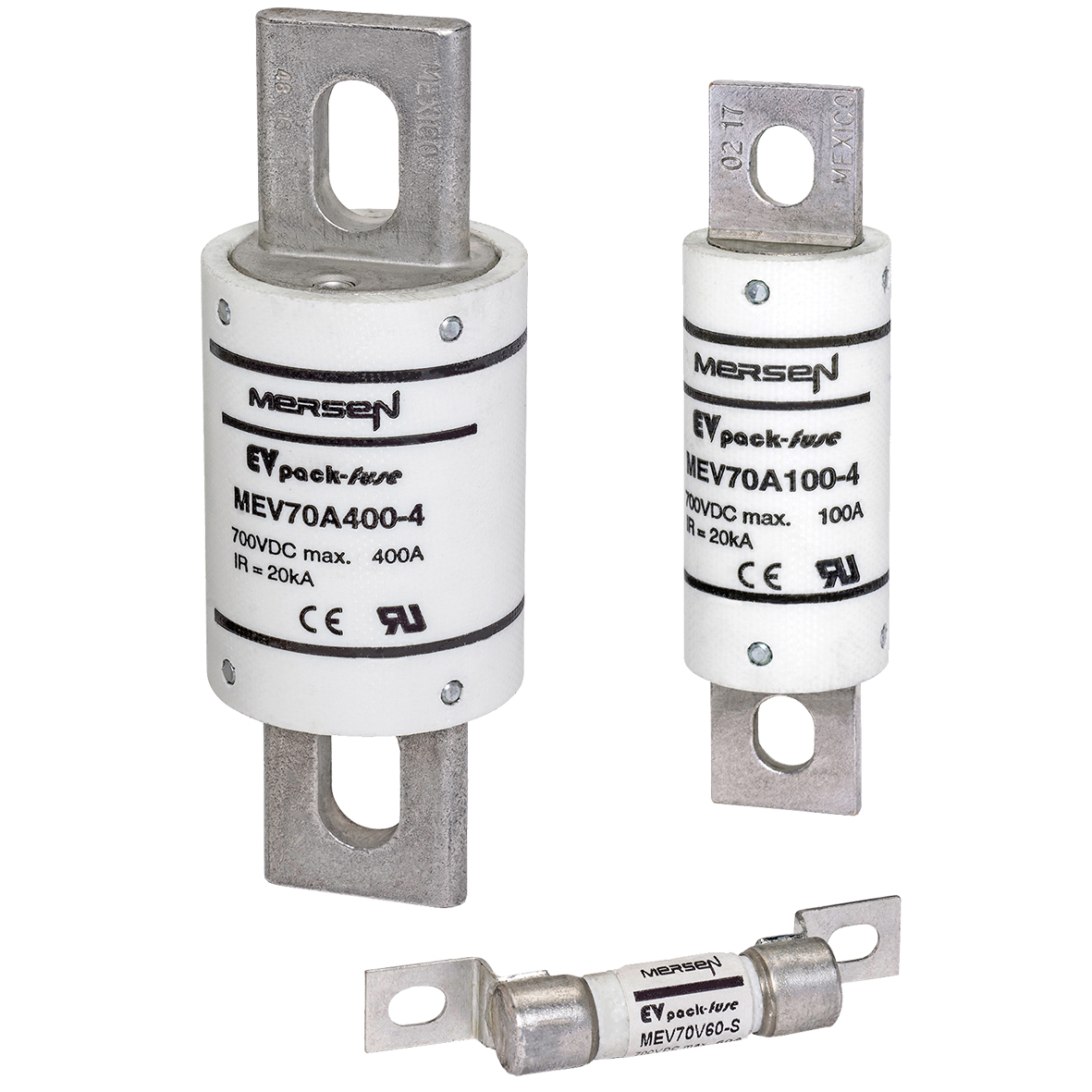

Mersen EVpack Fuse 700VDC UL 60A Max. BC: 20 kA @ 700 V L/R ? 1 ms Surface Screw Mount
Mersen #:MEV70V60-S
SKU: MERSMEV70V60-S
UPC: 782001482855
SKU: MERSMEV70V60-S
UPC: 782001482855
Your Price: $32.16 / EA
Mersen EVpack Fuse 700VDC UL 60A Max. BC: 20 kA @ 700 V L/R ? 1 ms Surface Screw Mount
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product EVpack Fuse 700VDC UL 60A Max. BC: 20 kA
Specification Sheet
Detailed Description
EVpack Fuse 700VDC UL 60A Max. Rated Breaking Capacity DC: 20 kA @ 700 V L/R 1 ms Surface Screw Mount
| Connection Material: | Tin-Plated Copper |
| DC Voltage Rating: | 700 V |
| Amperage Rating: | 60 A |
| Mounting: | PC Mount |
| Connection: | Surface Screw Mount |
| Size: | 2.52 x 0.41 in |
| Application: | Electrical Energy Storage Battery pack protection Battery charger Supercapacitor pack protection Backup protection for DC relay / disconnector / switch Maintenance Safety Disconnect (MSD) |
| Special Features: | Design for DC applications Low watt losses High cycling performance Ultra compact size Current Ratings (In): 35 to 600A Interrupting Rating (IR): 20kA @ 700VDC, L/R equals1ms High inrush current capability |
| Standard: | Power Cycling & Vibration JASO D622 |
| Type: | Battery Pack Fuses |
