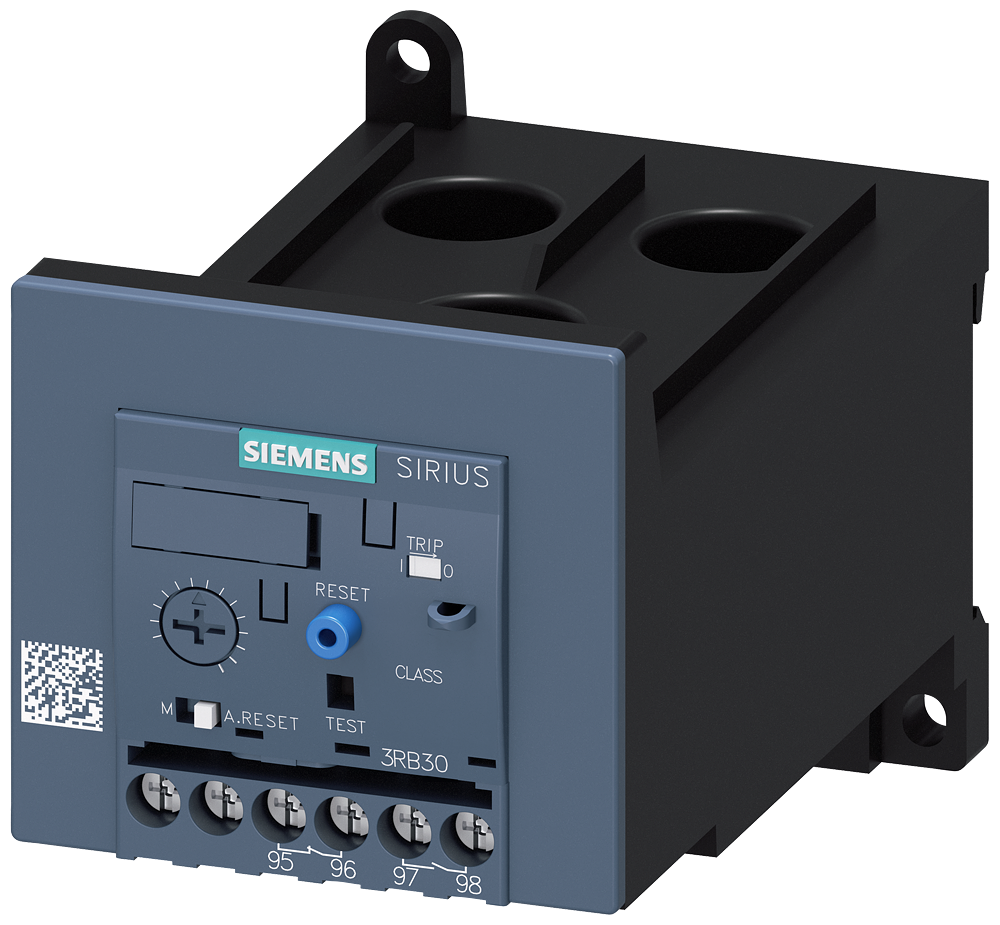

Siemens Industry ELECTRONIC OVERLOAD RELAY. 32...115 A
Siemens Industry #:3RB30462XW1
SKU: SIEM3RB30462XW1
UPC: 804766407932
SKU: SIEM3RB30462XW1
UPC: 804766407932
Your Price: $529.80 / EA
Siemens Industry ELECTRONIC OVERLOAD RELAY. 32...115 A
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product ELECTRONIC OVERLOAD RELAY. 32...115 A
Specification Sheet
Detailed Description
OVERLOAD RELAY 32...115 A FOR MOTOR PROTECTION SIZE S3. CLASS 20E STAND-ALONE INSTALLATION MAIN CIRCUIT STR.-THR. TRANSF. AUX. CIRCUIT SCREW TERMINAL MANUAL-AUTOMATIC RESET
| Required spacing / for grounded parts / downwards: | 0 mm |
| Conducted interference / due to burst / acc. to IEC 61000-4-4: | 2kV(powerports),1kV(signalports)correspondstodegreeofseverity3 |
| Required spacing / for grounded parts / forwards: | 0 mm |
| Required spacing / for live parts / at the side: | 6 mm |
| Protection class IP / on the front: | IP20 |
| Required spacing / for live parts / Backwards: | 0 mm |
| Required spacing / for live parts / forwards: | 0 mm |
| EMC emitted interference / acc. to IEC 60947-1: | CISPR11,environmentB(residentialarea) |
| EMI immunity / acc. to IEC 60947-1: | correspondstodegreeofseverity3 |
| Conducted interference / due to conductor-conductor surge / acc. to IEC 61000-4-5: | 1kV(linetoline)correspondstodegreeofseverity3 |
| Product designation: | solid-stateoverloadrelay |
| Conducted interference / due to conductor-earth surge / acc. to IEC 61000-4-5: | 2kV(linetoearth)correspondstodegreeofseverity3 |
| Required spacing / for grounded parts / upwards: | 0 mm |
| Required spacing / for live parts / downwards: | 0 mm |
| Required spacing / for live parts / upwards: | 0 mm |
| Trip Class: | CLASS20E |
| Depth: | 124 mm |
| Width: | 70 mm |
| Height: | 106 mm |
