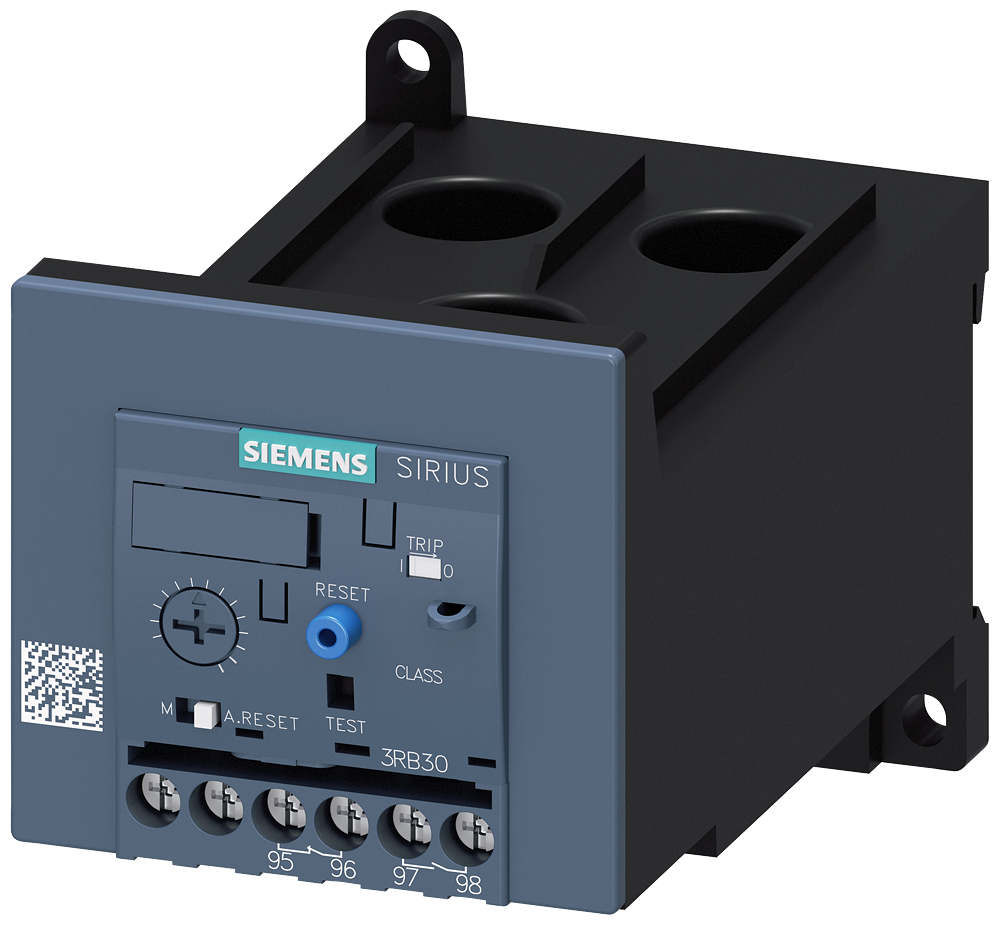

Siemens Industry ELECTRONIC OVERLOAD RELAY. 32...115 A
Siemens Industry #:3RB30461XW1
SKU: SIEM3RB30461XW1
UPC: 804766407857
SKU: SIEM3RB30461XW1
UPC: 804766407857
Your Price: $470.11 / EA
Siemens Industry ELECTRONIC OVERLOAD RELAY. 32...115 A
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product ELECTRONIC OVERLOAD RELAY. 32...115 A
Specification Sheet
Detailed Description
OVERLOAD RELAY 32...115 A FOR MOTOR PROTECTION SIZE S3. CLASS 10E STAND-ALONE INSTALLATION MAIN CIRCUIT STR.-THR. TRANSF. AUX. CIRCUIT SCREW TERMINAL MANUAL-AUTOMATIC RESET
| Conducted interference / due to burst / acc. to IEC 61000-4-4: | 2kV(powerports),1kV(signalports)correspondstodegreeofseverity3 |
| Field-bound parasitic coupling / acc. to IEC 61000-4-3: | 10V/m |
| Protection class IP / on the front: | IP20 |
| EMC emitted interference / acc. to IEC 60947-1: | CISPR11,environmentB(residentialarea) |
| Electrostatic discharge / acc. to IEC 61000-4-2: | 6kVcontactdischarge/8kVairdischarge |
| Reference code / acc. to DIN EN 61346-2: | F |
| Design of the fuse link / for short-circuit protection of the auxiliary switch / required: | fusegG:6A |
| EMI immunity / acc. to IEC 60947-1: | correspondstodegreeofseverity3 |
| Conducted interference / due to conductor-conductor surge / acc. to IEC 61000-4-5: | 1kV(linetoline)correspondstodegreeofseverity3 |
| Size of contactor / can be combined / company-specific: | S3 |
| Conducted interference / due to conductor-earth surge / acc. to IEC 61000-4-5: | 2kV(linetoearth)correspondstodegreeofseverity3 |
| Vibration resistance: | 1-6Hz,15mm;6-500Hz,20m/s;10cycles |
| Reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750: | F |
| Size of overload relay: | S3 |
| Type of protection: | II(2)G[Exe][Exd][Expx]II(2)D[Ext][Exp] |
| Trip Class: | CLASS10E |
| Depth: | 124 mm |
| Width: | 70 mm |
| Height: | 106 mm |
