Your Price: $107.38 / EA
Leviton DUPLEX FLOORBOX NICKEL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product DUPLEX FLOORBOX NICKEL
Specification Sheet
Detailed Description

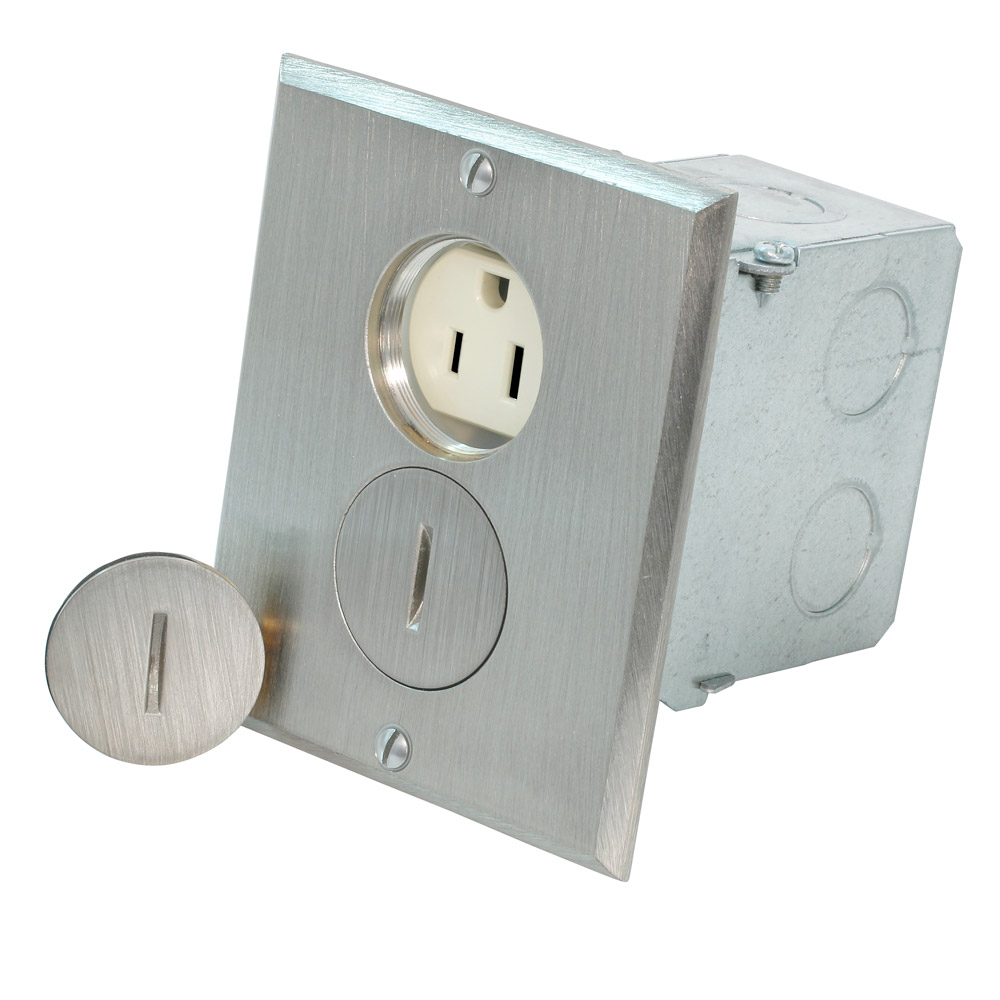

15Amp, 125 Volt, Floor Box Assembly, Includes Brass with Brushed Nickel Finish Floor Plate, Gasket, Screw Cap, O-ring, and Switch Box
| Color: | Ivory |
| Size: | 4.50 H x 3.75 W x 4.50 D IN |
| Amperage Rating: | 15 AMP |
| Voltage Rating: | 125 |
| Number of Wires: | 3 |
| Number of Poles: | 2 |
| Application: | Commercial |
| Dielectric Strength: | 2000 (Min.) |
| Environmental Conditions: | Flammability (Rated V-2 per UL94) |
| Material: | Nylon |
| Wire Size: | 14-10 |
| Temperature Rating: | -40 to +60 DEG C |
| NEMA Rating: | 5-15R |
| Mounting: | Floor Box |
| Standard: | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File E152105);UL Listed 498 (File E13399) |
| Type: | Floor Box Duplex Receptacle |
