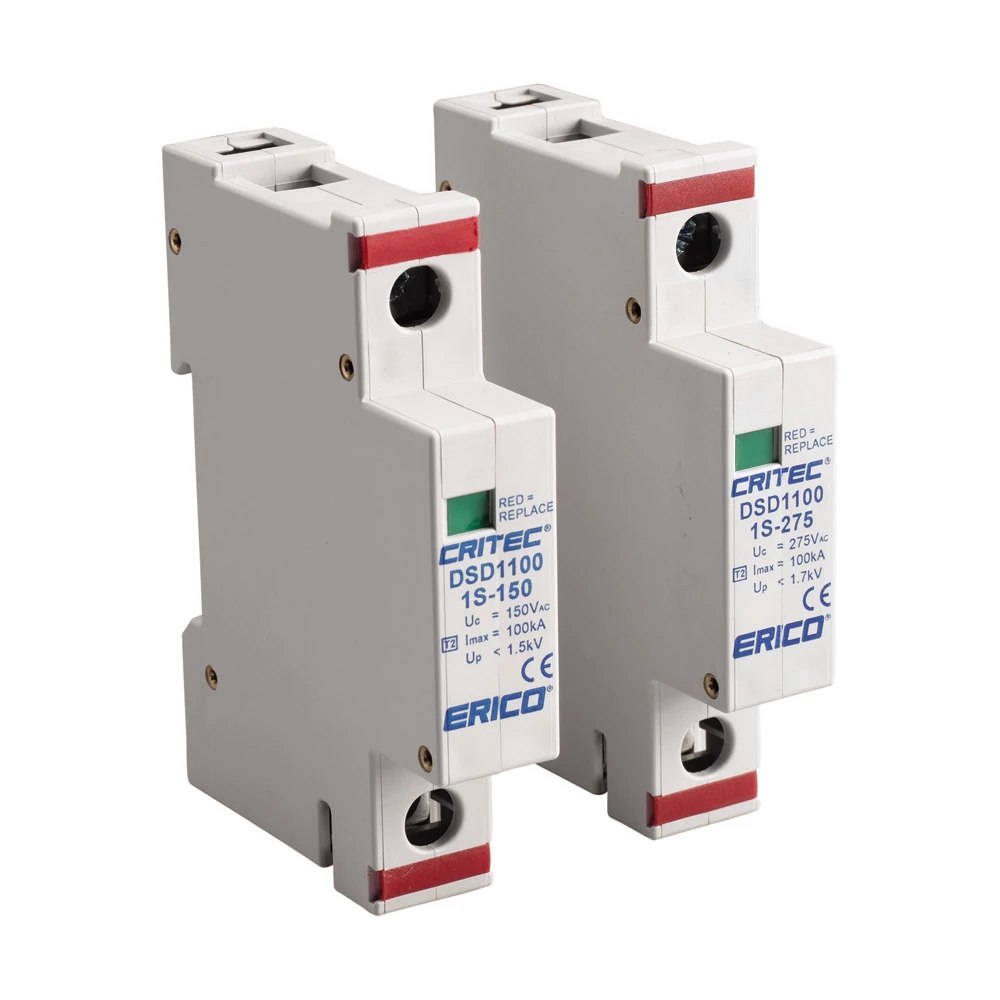

nVent DIVERTER,SURGE,275V,100KA,1 MODE,DSD
nVent #:DSD11001S275
SKU: NVENDSD11001S275
UPC: 782856470236
SKU: NVENDSD11001S275
UPC: 782856470236
Your Price: $0.00
nVent DIVERTER,SURGE,275V,100KA,1 MODE,DSD
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product DIVERTER,SURGE,275V,100KA,1 MODE,DSD
Specification Sheet
Warranty
Detailed Description
Surge Diverter, 100 kA Single Mode, 220-240 V Un
| Complies With: | ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C |
| Enclosure Rating: | IP 20 |
| Enclosure Material: | UL 94V-0 Thermoplastic |
| Max Continuous Operating Voltage (Uc): | 275 VAC |
| Technology: | MOV with thermal disconnect |
| Remote Contacts: | No |
| Protection Modes: | Single |
| Voltage Protection Level (Up): | 850 V @ 3 kA |
| Status Indication: | Mechanical flag |
| Nominal System Voltage (Un): | 220 - 240 V |
| Module Width: | 1 M |
| Distribution System: | TN-C |
| Temperature: | -40-176 |
| Frequency: | 0-60 |
| Nominal Discharge Current (In): | 40 kA 8/20 s |
| Application: | Surge Protection; Power Connections |
| Depth: | 68-68 |
| Mounting: | 35 mm top hat DIN rail |
| Height: | 90-90 |
| Type: | Surge Diverters |
| Width: | 18-18 |
