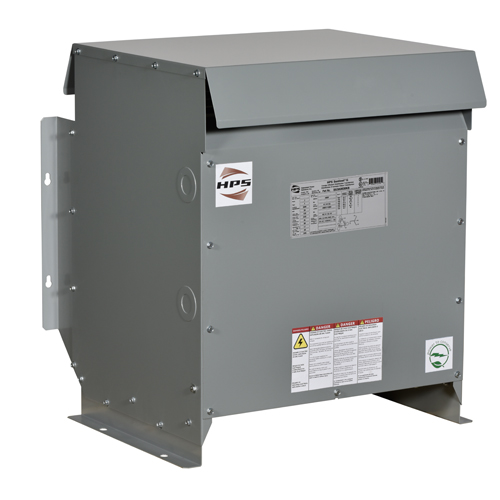

Hammond Power Solutions D16/NRC19 SNK4 3PH 15kVA600D-480Y/277VAL
Hammond Power Solutions #:K3A0015PK4S
SKU: HAMMK3A0015PK4S
UPC: 803423129118
SKU: HAMMK3A0015PK4S
UPC: 803423129118
Your Price: $2,903.25 / EA
Hammond Power Solutions D16/NRC19 SNK4 3PH 15kVA600D-480Y/277VAL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product D16/NRC19 SNK4 3PH 15kVA600D-480Y/277VAL
Specification Sheet
Warranty
Detailed Description
600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient K-Factor Transformer, K-Factor 4, 600D PV, 480Y/277 SV, 15 kVA, 3PH, Aluminum Wound, Shielded
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| KVA Rating: | 15 kVA |
| Enclosure: | DH1-N3R - Indoor or Outdoor |
| Height: | 22 in |
| Secondary Voltage: | 480Y/277 V |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Primary Voltage: | 600D V |
| Width: | 21.5 in |
| Winding: | S - AL + Shield |
| Application: | Addresses the overheating problems due to harmonics associated with non-linear loads where drives, personal computers, telecommunications equipment, broadcasting equipment and other similar power electronics are found in high concentrations. |
| Length: | 20.13 in |
| Type: | Transformer > Distribution > DOE 2016 Energy Efficient > K Factor > Three Phase |
