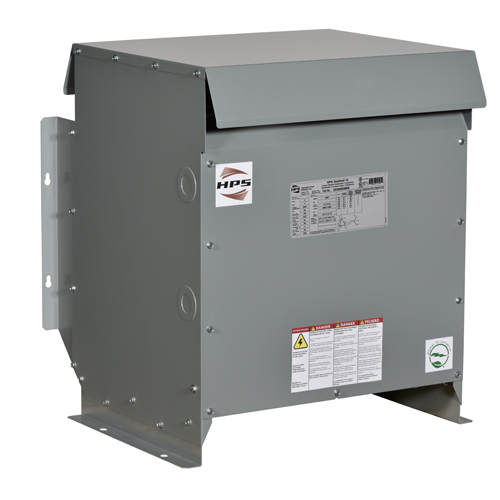

Hammond Power Solutions D16/NRC19 SNK4 3PH 15kVA600D-208Y/120VCU
Hammond Power Solutions #:K3A0015PB4K
SKU: HAMMK3A0015PB4K
UPC: 803423128784
SKU: HAMMK3A0015PB4K
UPC: 803423128784
Your Price: $3,429.08 / EA
Hammond Power Solutions D16/NRC19 SNK4 3PH 15kVA600D-208Y/120VCU
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product D16/NRC19 SNK4 3PH 15kVA600D-208Y/120VCU
Specification Sheet
Warranty
Detailed Description
600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient K-Factor Transformer, K-Factor 4, 600D PV, 208Y/120 SV, 15 kVA, 3PH, Copper Wound, Shielded
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Number Of Phases: | 3 |
| Number Of Taps: | ST-20 compliant |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| KVA Rating: | 15 kVA |
| Enclosure: | DH1-N3R - Indoor or Outdoor |
| Height: | 22 in |
| Mounting: | Floor or Wall/Ceiling Mount |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Secondary Voltage: | 208Y/120 V |
| Primary Voltage: | 600D V |
| Application: | Addresses the overheating problems due to harmonics associated with non-linear loads where drives, personal computers, telecommunications equipment, broadcasting equipment and other similar power electronics are found in high concentrations. |
| Length: | 20.13 in |
