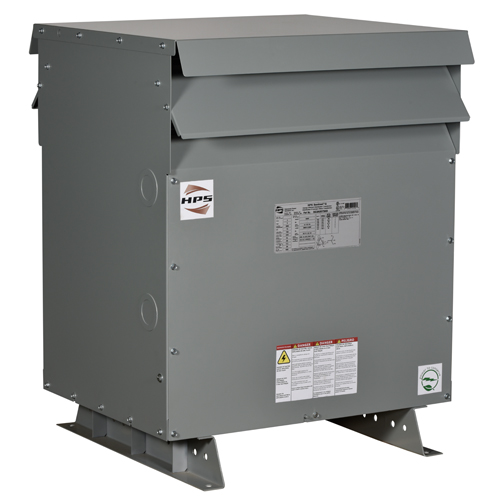

Hammond Power Solutions D16/NRC19 SNK4 112kVA480D-480Y/277VCU
Hammond Power Solutions #:K3A0112KK4K
SKU: HAMMK3A0112KK4K
UPC: 803423129040
SKU: HAMMK3A0112KK4K
UPC: 803423129040
Your Price: $10,745.00 / EA
Hammond Power Solutions D16/NRC19 SNK4 112kVA480D-480Y/277VCU
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product D16/NRC19 SNK4 112kVA480D-480Y/277VCU
Specification Sheet
Warranty
Detailed Description
600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient K-Factor Transformer, K-Factor 4, 480D PV, 480Y/277 SV, 112.5 kVA, 3PH, Copper Wound, Shielded
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Number Of Phases: | 3 |
| Number Of Taps: | ST-20 compliant |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| KVA Rating: | 112.5 kVA |
| Secondary Voltage: | 480Y/277 V |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Primary Voltage: | 480D V |
| Application: | Addresses the overheating problems due to harmonics associated with non-linear loads where drives, personal computers, telecommunications equipment, broadcasting equipment and other similar power electronics are found in high concentrations. |
| Enclosure: | DH3-N3R - Indoor or Outdoor |
| Height: | 36 in |
| Length: | 27 in |
| Mounting: | Floor (Opt. Wall/Ceiling Mount) |
