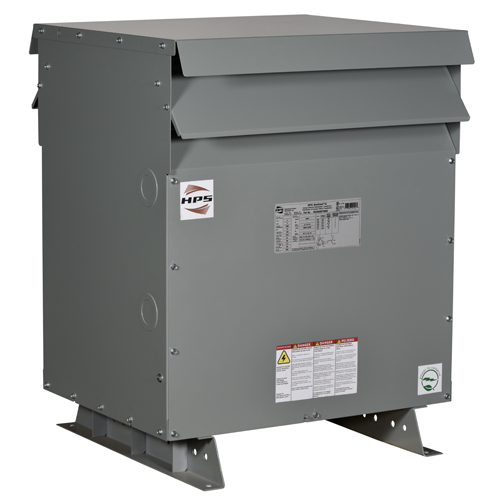

Hammond Power Solutions D16/NRC19 DIT 3PH 75kVA460D-230Y/133 VAL
Hammond Power Solutions #:E3A0075JC
SKU: HAMME3A0075JC
UPC: 803423143282
SKU: HAMME3A0075JC
UPC: 803423143282
Your Price: $5,747.70 / EA
Hammond Power Solutions D16/NRC19 DIT 3PH 75kVA460D-230Y/133 VAL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product D16/NRC19 DIT 3PH 75kVA460D-230Y/133 VAL
Specification Sheet
Warranty
Detailed Description
600V Class Three Phased DOE2016 and NRCan 2019 Compliant Energy Efficient Drive Isolation Transformer 75kVA 460D-230Y/133 V AL 60Hz 3R
| Frequency Rating: | 60 HZ |
| Application: | Variable Speed Drives. |
| Efficiency: | NRCan 2018 Energy Efficient |
| Insulation Class: | 220 Deg C Class |
| Mounting: | Floor or Wall Mount |
| NEMA Frame Size: | Type 3R |
| Number Of Phases: | 3 |
| Standard: | CSA, UL |
| Enclosure: | DH3-N3R - Indoor or Outdoor |
| Height: | 36 IN |
| Length: | 27 IN |
| Temperature Rating: | Typical 30 Average/ 40 Maximum |
| Type: | Transformers > Drive Isolation > NRCan 2018 Energy Efficient |
| Width: | 28.3 IN |
| KVA Rating: | 75 kVA |
