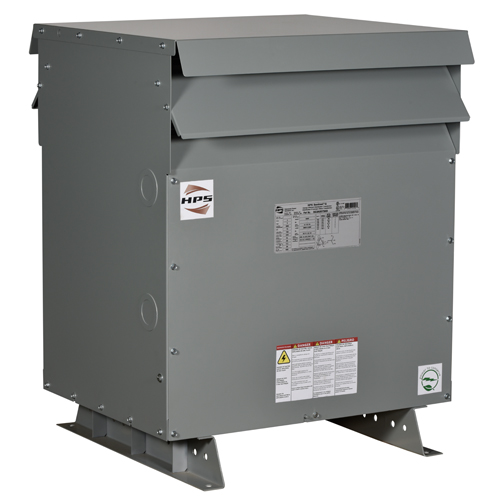

Hammond Power Solutions D16/NRC19 3PH 75kVA 600D-480Y/277V AL
Hammond Power Solutions #:G3A0075PK
SKU: HAMMG3A0075PK
UPC: 803423125967
SKU: HAMMG3A0075PK
UPC: 803423125967
Your Price: $5,195.48 / EA
Hammond Power Solutions D16/NRC19 3PH 75kVA 600D-480Y/277V AL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product D16/NRC19 3PH 75kVA 600D-480Y/277V AL
Specification Sheet
Warranty
Detailed Description
600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 600D PV, 480Y/277 SV, 75 kVA, 3PH, Aluminum Wound
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Number Of Phases: | 3 |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| KVA Rating: | 75 kVA |
| Application: | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Type: | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
| Winding: | A - Aluminum |
| Enclosure: | DH3-N3R - Indoor or Outdoor |
| Height: | 36 in |
| Length: | 27 in |
| Mounting: | Floor (Opt. Wall/Ceiling Mount) |
| Width: | 28.3 in |
