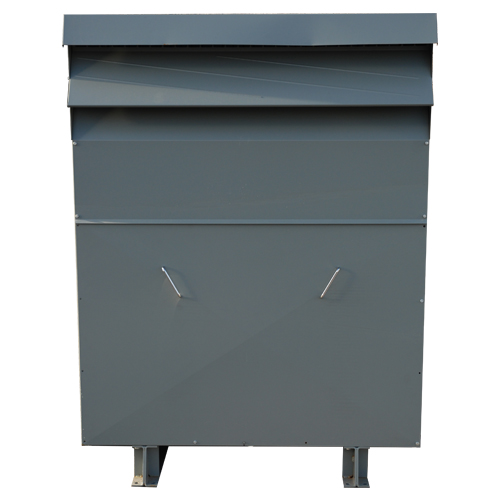

Hammond Power Solutions D16/NRC19 3PH 1000kVA 600D-480Y/277V AL
Hammond Power Solutions #:G3A1000PK
SKU: HAMMG3A1000PK
UPC: 803423128524
SKU: HAMMG3A1000PK
UPC: 803423128524
Your Price: $46,792.03 / EA
Hammond Power Solutions D16/NRC19 3PH 1000kVA 600D-480Y/277V AL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product D16/NRC19 3PH 1000kVA 600D-480Y/277V AL
Specification Sheet
Warranty
Detailed Description
600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 600D PV, 480Y/277 SV, 1000 kVA, 3PH, Aluminum Wound
| Frequency Rating: | 60 Hz |
| Cooling: | Convection cooled |
| Number Of Phases: | 3 |
| Number Of Taps: | ST-20 compliant |
| Standard: | CSA, UL |
| Temperature Rating: | Typical 30 Average/ 40 Maximum Deg C |
| Mounting: | Floor mount |
| Application: | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Secondary Voltage: | 480Y/277 V |
| Special Features: | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Primary Voltage: | 600D V |
| Enclosure: | DH8-N3R - Indoor or Outdoor |
| Height: | 82 in |
| KVA Rating: | 1000 kVA |
| Length: | 49.5 in |
