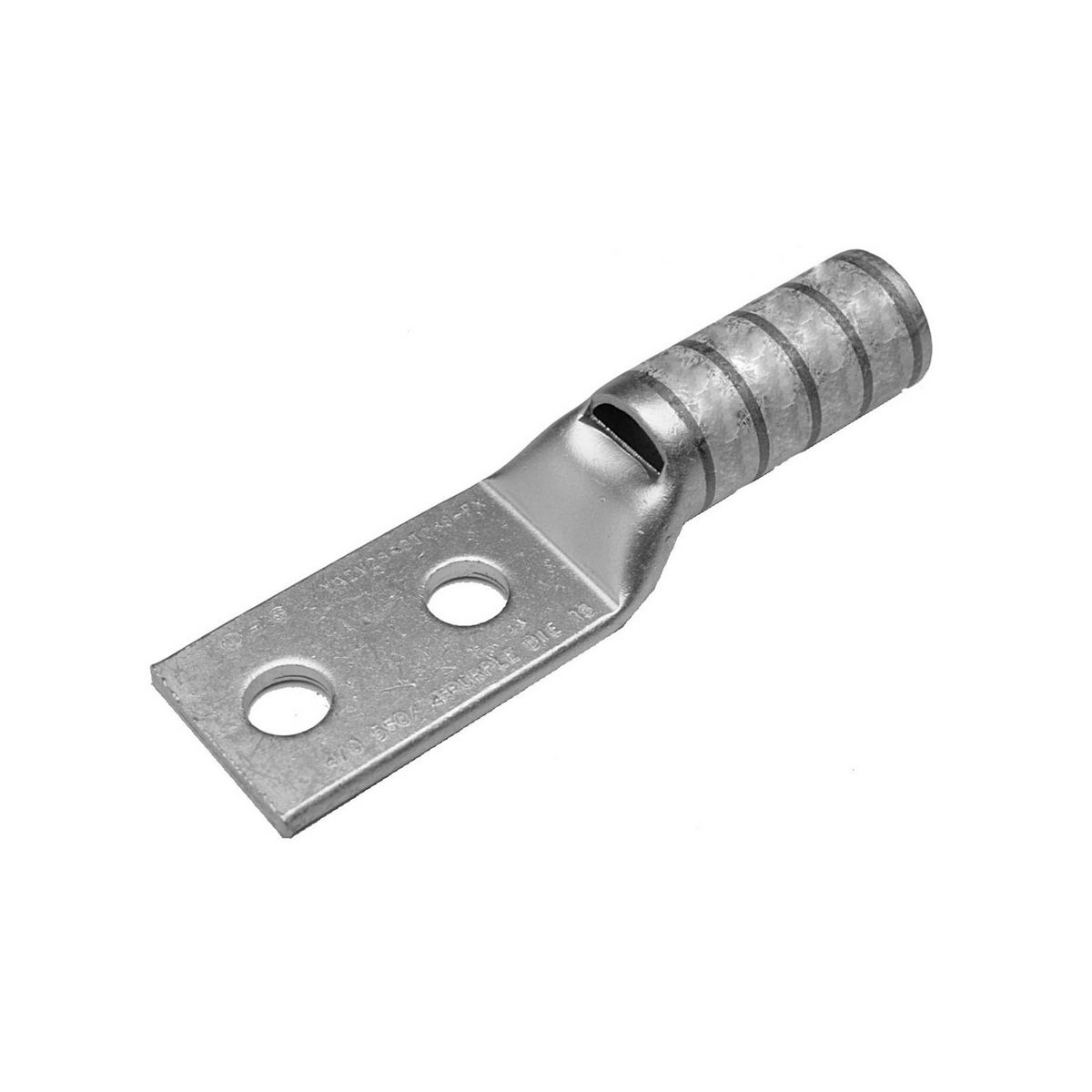

Burndy CULUG-4/0 FLX-LONG W/PORT-1/4STUD
Burndy #:YAZV282TC14FX
SKU: BURNYAZV282TC14FX
UPC: 781810228562
SKU: BURNYAZV282TC14FX
UPC: 781810228562
Your Price: $28.62 / EA
Burndy CULUG-4/0 FLX-LONG W/PORT-1/4STUD
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product CULUG-4/0 FLX-LONG W/PORT-1/4STUD
Specification Sheet
Detailed Description
Cu Comp Terminal Flex Cond, Bvl Entry, 2 Hole/W/InspWindow, 4/0 Weld,4/0(550/#24)DLO Flex, 4/0 AWG Code, 600 V-35 kV, 1/4" Stud, 0.62" Spacing, Lng bbl.
| Voltage - Maximum: | 35000 |
| Rating - KVA: | 35 kV |
| Plated: | Y |
| EU RoHS Indicator: | Yes |
| Product Type: | TERMINAL |
| Finish: | Tin-Plated |
| Material: | COPPER |
| Voltage Rating: | 35 kV |
| Standard: | UL 486A-486B |
| Application: | Wire Termination |
| Type: | Long Barrel, Skive |
| Special Features: | Features: With Inspection Window, Conductor Type: Flexible Copper, Wire Strip Length: 1-11/16 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated, Color Code: Purple, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): |
