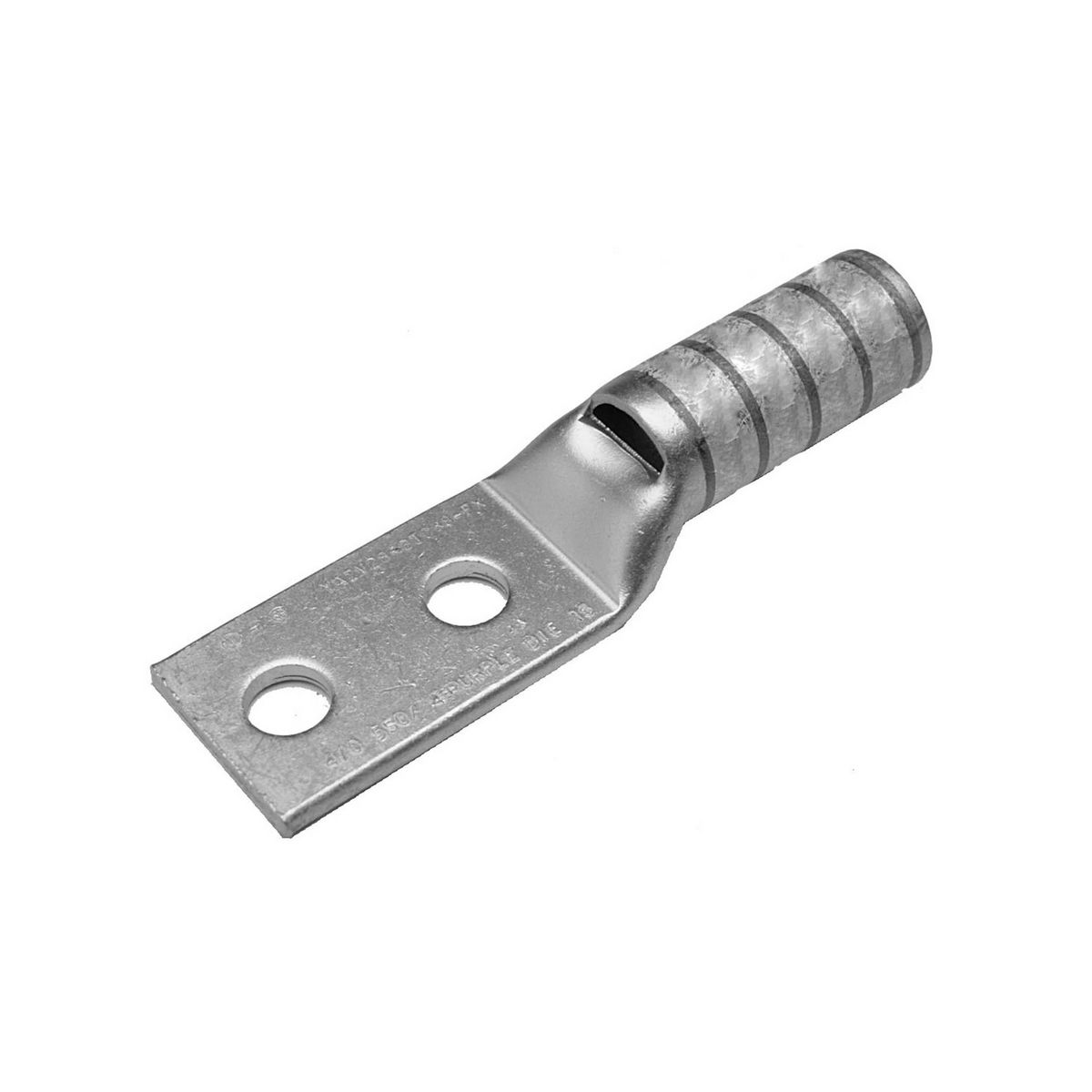

Burndy CULUG- 2FLEX-LNG-1/4STUD, 2HOLE E1
Burndy #:YAZV2C2TC14E1FX
SKU: BURNYAZV2C2TC14E1FX
UPC: 781810228302
SKU: BURNYAZV2C2TC14E1FX
UPC: 781810228302
Your Price: $18.05 / EA
Burndy CULUG- 2FLEX-LNG-1/4STUD, 2HOLE E1
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product CULUG- 2FLEX-LNG-1/4STUD, 2HOLE E1
Specification Sheet
Detailed Description
Cu compression long barrel flex conductor, 2 holes/W/ insp window, #2 weld(125/24-150/24), #2AWG, 1/4" stud, Tin plated, Brown, 10 index.
| Voltage - Maximum: | 35000 |
| Rating - KVA: | 35 kV |
| Plated: | Y |
| EU RoHS Indicator: | Yes |
| Product Type: | TERMINAL |
| Finish: | Tin-Plated |
| Material: | COPPER |
| Voltage Rating: | 35 kV |
| Standard: | UL 486A-486B |
| Application: | Wire Termination |
| Type: | Long Barrel, Skive |
| Special Features: | Features: With Inspection Window, Color Code: Brown, Tongue Angle: Straight, Wire Strip Length: 1-7/16 IN, Die Index: 10, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y1MRTC, MY29-11 Tool, (4), Temperature Rating: 9 |
