Your Price: $40.28 / EA
NSi Industries CU CMP Lug Stack 4/0 AWG
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product CU CMP Lug Stack 4/0 AWG
Detailed Description

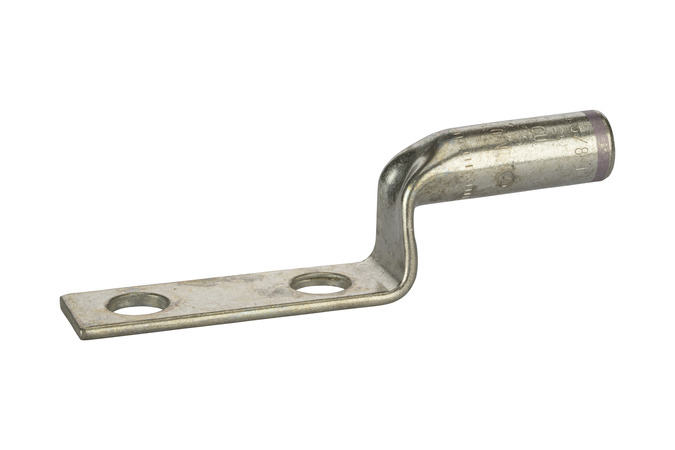

2 Hole Long Barrel Copper Stacked Compression Lug 4/0 AWG - 1/2" Bolt Long Barrel Copper Stacked Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are designed for use with the L-N Series. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference.
| Stud Size: | 1/2 IN |
| Finish: | Tin Plated |
| Material: | COPPER |
| Voltage Rating: | 600 V |
| Environmental Conditions: | 90 C |
| Application: | Terminate, Splice, Tap Power Connectors |
| Standard: | UL486A/B |
| Mounting: | 1/2 Mounting Holes |
| Number Of Holes: | 2 |
| Cable Size: | 4/0 AWG (STR) |
| Color: | Purple |
| Size: | Lequals5.31 - Wequals1.00 - ODequals.690 - IDequals.550 |
| Special Features: | 4/0 AWG (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing |
| Type: | Long Barrel Stacking Lugs |
