NSi Industries CU CMP Lug Long 2/0 AWG Nema Mtg Spac
NSi Industries #:L20N
SKU: NSIIL20N
UPC: 662381035103
SKU: NSIIL20N
UPC: 662381035103
Your Price: $12.01 / EA
NSi Industries CU CMP Lug Long 2/0 AWG Nema Mtg Spac
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product CU CMP Lug Long 2/0 AWG Nema Mtg Spac
Detailed Description

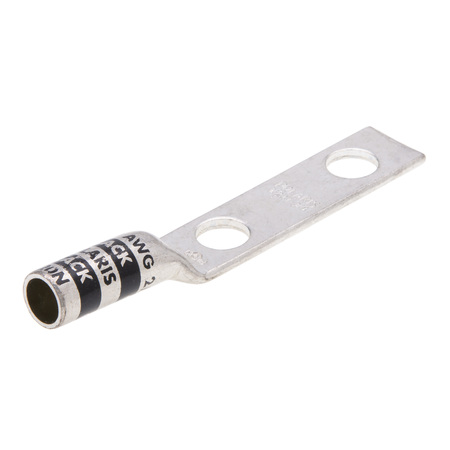

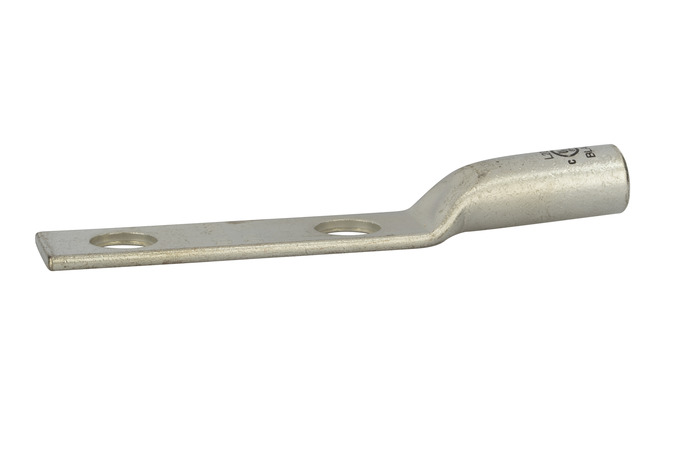

2 Hole Long Barrel Copper Compression Lug 2/0 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
| Cable Size: | 2/0 AWG (STR) |
| Stud Size: | 1/2 IN |
| Finish: | Tin Plated |
| Material: | COPPER |
| Voltage Rating: | 600 V |
| Environmental Conditions: | 90 C |
| Application: | Terminate, Splice, Tap Power Connectors |
| Mounting: | 1/2 Mounting Holes |
| Number Of Holes: | 2 |
| Color: | Black |
| Standard: | UL486A/B, UL467 (8 AWG -3/0 AWG) |
| Type: | Long Barrel - Two Hole |
| Size: | Lequals4.61 - Wequals.810 - ODequals.560 - IDequals.440 |
| Special Features: | 2/0 AWG (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing |
