NSi Industries CU CMP Lug Long 2 AWG 5/16 Bolt 3/4 Spa
NSi Industries #:L2N-56
SKU: NSIIL2N-56
UPC: 662381035042
SKU: NSIIL2N-56
UPC: 662381035042
Your Price: $13.87 / EA
NSi Industries CU CMP Lug Long 2 AWG 5/16 Bolt 3/4 Spa
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product CU CMP Lug Long 2 AWG 5/16 Bolt 3/4 Spa
Detailed Description

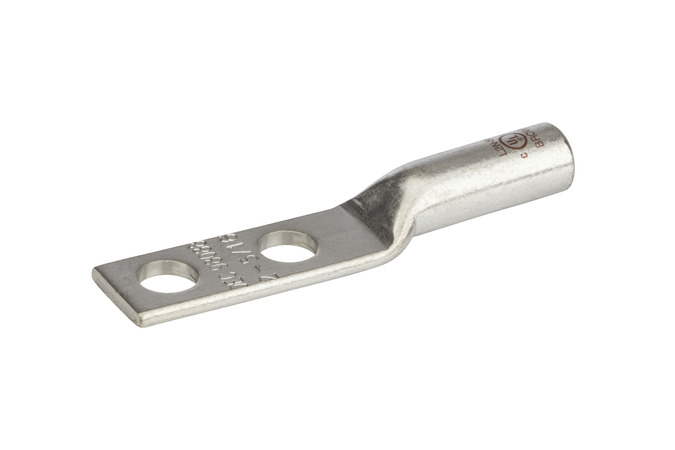

2 Hole Long Barrel Copper Compression Lug 2 AWG - 5/16" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
| Material: | Copper |
| Number of Holes: | 2 |
| Environmental Conditions: | 90 C |
| Voltage Rating: | 600 V |
| Application: | Terminate, Splice, Tap Power Connectors |
| Cable Size: | # 2 AWG (STR) |
| Standard: | UL486A/B, UL467 (8 AWG -3/0 AWG) |
| Stud Size: | 5/16 IN |
| Color: | Brown |
| Type: | Long Barrel - Two Hole |
| Mounting: | 5/16 Mounting Holes |
| Size: | Lequals2.87 - Wequals.600 - ODequals.420 - IDequals.310 |
| Special Features: | # 2 AWG (STR) - 5/16 Mounting Holes - 3/4 Hole Spacing |
