Thomas & Betts Cs Term. Kit, 25kv, Jcn-4, 500mcm
Thomas & Betts #:R2T28J4-N0330
SKU: ABBIR2T28J4-N0330
UPC: 783786796892
SKU: ABBIR2T28J4-N0330
UPC: 783786796892
Your Price: $205.69 / EA
Thomas & Betts Cs Term. Kit, 25kv, Jcn-4, 500mcm
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

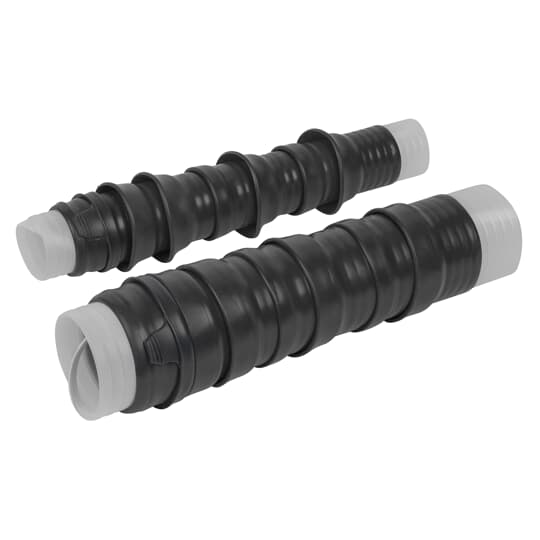

Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter 1.30 - 2.10 for Concentric Neural and Jacketed Concentric Neutral Cable, includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Conductor 500 Stranded/Compressed or 600 Compact/Solid
| Application: | Cable Termination, Outdoor Application, 28kV |
| Cable Type: | Concentric Neutral Wire |
| Color: | Dark Gray |
| Conductor Size: | 500 to 600 kcmil |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Type: | Cable Termination - Outdoor - Ranger2 |
| Voltage Rating: | 28 kV |
