Your Price: $1,933.47 / EA

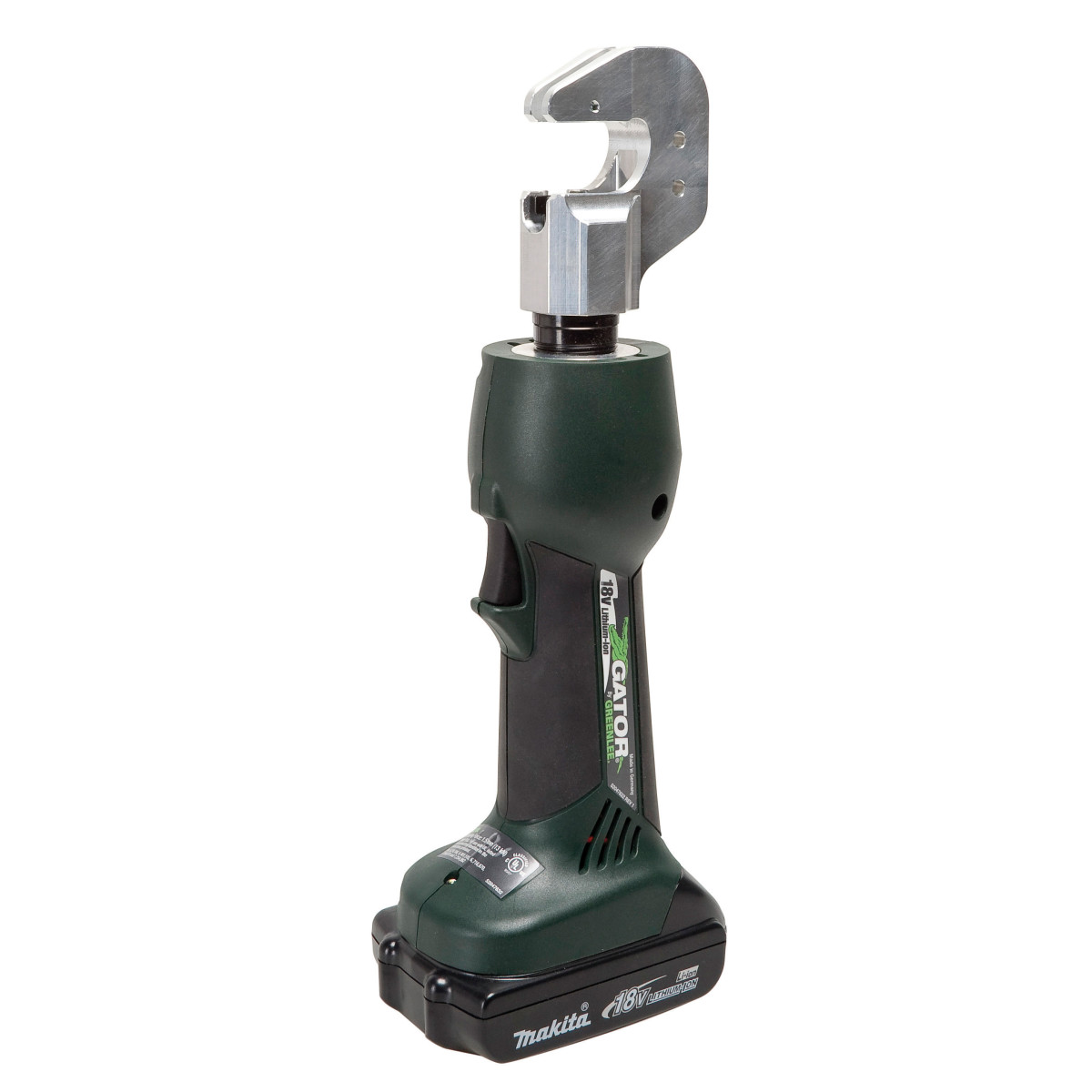

Greenlee CRIMP TOOL, BAT 1.5T 12V CHRGR
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product CRIMP TOOL, BAT 1.5T 12V CHRGR
Specification Sheet
Detailed Description
Gator 1-5 Ton Battery-Powered Crimping Tool with 12V Charger. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70percent more cycles per charge and faster cycle times. LED light provides the operator with the battery charge and tool maintenance status. In line tool style is light weight and very easy to control. One trigger controls all tool functions. Crimping head rotates 350. Tools automatically retract when the crimping or cutting cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Uses all Kwik Cycle 9 crimping dies.
| Battery: | 18 V, 1.5 AMP-HR Lithium-Ion |
| Battery Charge Time: | 30 MINT |
| Capacity: | Kwik Cycle 9 Die Sets |
| Crimp Cycle Time: | 2 S |
| Estimated Cycles per Charge: | 400 |
| Replacement Part: | 52177 UPC 52177 18 V 1.5 AMP-HR Li-ion Battery, 25752 UPC 25752 Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger |
| Weight: | 3-1/2 LB (1.600 KG) |
| Width: | 2-7/8 IN (73.000 MM) |
| Rotation: | 350 DEG |
| Type: | Terminal |
| Crimping Force: | 2900.000 LB (13.000 KN) |
| Overall Length: | 12-3/4 IN (324.000 MM) |
