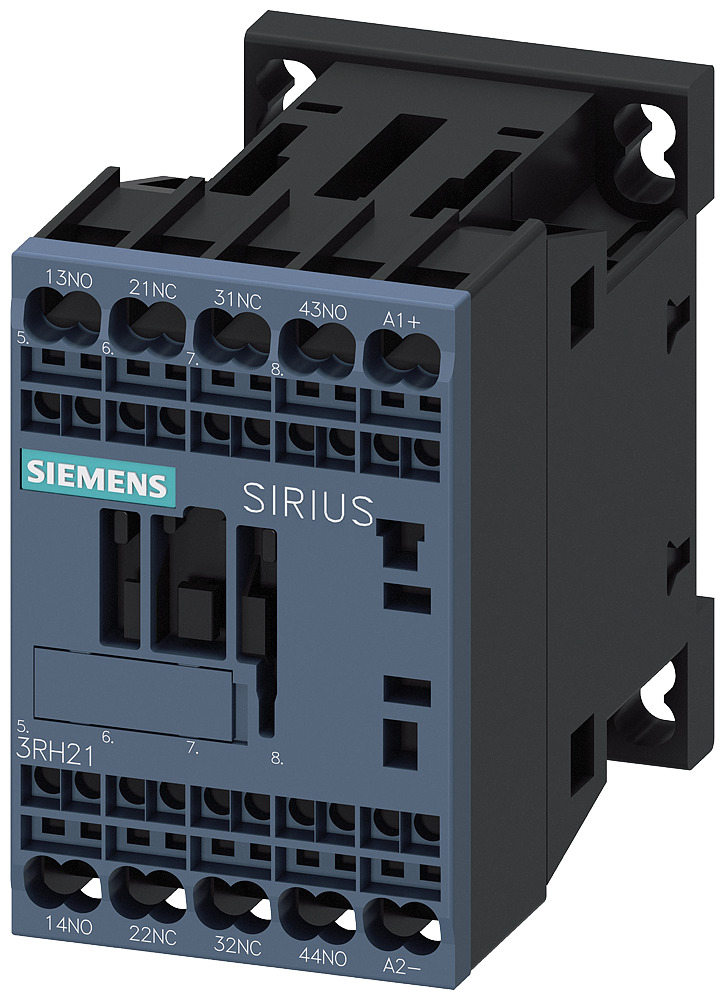

Siemens Industry COUPLING RELAY 2NO+2NC 30VDC SPRING
Siemens Industry #:3RH21222JC40
SKU: SIEM3RH21222JC40
UPC: 804766232299
SKU: SIEM3RH21222JC40
UPC: 804766232299
Your Price: $164.91 / EA
Siemens Industry COUPLING RELAY 2NO+2NC 30VDC SPRING
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product COUPLING RELAY 2NO+2NC 30VDC SPRING
Specification Sheet
Detailed Description
COUPL. CONT. REL.. 2NO+2NC. 30 V DC. 0.7...1.25*US. W. INTEGRATED DIODE. SIZE S00. SPRING-TYPE TERMINALS SUITABLE FOR PLC OUTPUTS
| Protection class IP / on the front: | IP20 |
| Degree of pollution: | 3 |
| Failure rate [FIT] / with low demand rate / acc. to SN 31920: | 100 FIT |
| mounting position: | +/-180rotationpossibleonverticalmountingsurface;canbetiltedforwardandbackwardby+/-22.5onverticalmountingsurface |
| Identification number and letter for switching elements: | 22E |
| Mounting type: | screwandsnap-onmountingonto35mmstandardmountingrail |
| Reference code / acc. to DIN 40719 extended according to IEC 204-2 / acc. to IEC 750: | K |
| Type of voltage / of the control supply voltage: | DC |
| Contact reliability / of auxiliary contacts: | 1faultyswitchingper100million(17V,1mA) |
| Type of electrical connection / for auxiliary and control current circuit: | spring-loadedterminals |
| Size of contactor: | S00 |
| Reference code / acc. to DIN EN 61346-2: | K |
| Design of the fuse link / for short-circuit protection of the auxiliary switch / required: | fusegL/gG:10A |
| Product designation: | Couplingrelayforswitchingauxiliarycircuits |
| Design of the surge suppressor: | withdiode |
