Appleton Electric Conduit Connector, Size: 1-1/4 IN, Connection: Armored Cable X Flexible Metal Conduit, Conductor Range: 0.38 - 1.03 IN, Material: Die-cast Zinc, Heigh...
Appleton Electric #:15235-DC
SKU: APPL15235-DC
UPC: 781381780650
SKU: APPL15235-DC
UPC: 781381780650
Your Price: $11.17 / EA
Appleton Electric Conduit Connector, Size: 1-1/4 IN, Connection: Armored Cable X Flexible Metal Conduit, Conductor Range: 0.38 - 1.03 IN, Material: Die-cast Zinc, Heigh...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1-1/4 IN NM SHEATHED/SEC CONN
Specification Sheet
Warranty
Detailed Description

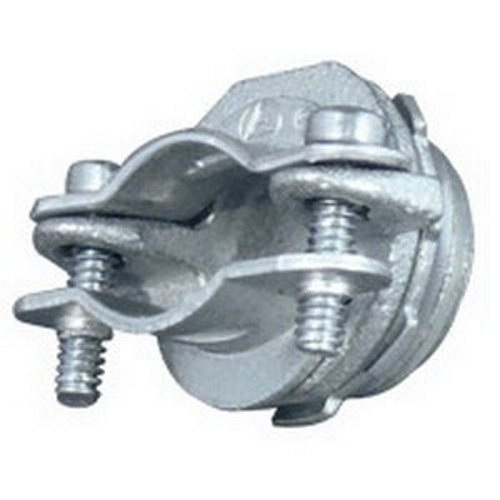

Conduit Connector, Size: 1-1/4 IN, Connection: Armored Cable X Flexible Metal Conduit, Conductor Range: 0.38 - 1.03 IN, Material: Die-cast Zinc, Height: 2.19 IN, Width: 0.63 IN, Thread Length: 0.63 IN, Standard: UL 514B, UL Listed: E2323
| Size: | 1-1/4 in |
| Application: | For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures |
| Material: | Die-cast Zinc |
| Special Features: | Furnished with locknut; Male hub threads-NPS |
| Connection: | Armored Cable X Flexible Metal Conduit |
| Type: | Conduit Connector |
| Standard: | UL 514B, UL Listed: E23237, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1 |
| Conductor Range: | 0.38 - 1.03 IN |
