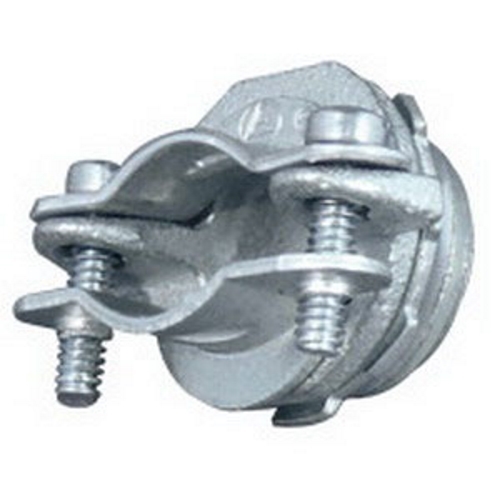

Appleton Electric Conduit Connector, Size: 1-1/2 IN, Connection: Armored Cable X Flexible Metal Conduit, Conductor Range: 0.84 - 1.59 IN, Material: Malleable Iron, Heig...
Appleton Electric #:15236
SKU: APPL15236
UPC: 781381780704
SKU: APPL15236
UPC: 781381780704
Your Price: $20.63 / EA
Appleton Electric Conduit Connector, Size: 1-1/2 IN, Connection: Armored Cable X Flexible Metal Conduit, Conductor Range: 0.84 - 1.59 IN, Material: Malleable Iron, Heig...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1-1/2 IN NM SHEATHED/SEC CONN
Specification Sheet
Warranty
Detailed Description
Conduit Connector, Size: 1-1/2 IN, Connection: Armored Cable X Flexible Metal Conduit, Conductor Range: 0.84 - 1.59 IN, Material: Malleable Iron, Height: 2.63 IN, Width: 0.81 IN, Thread Length: 3/4 IN, Standard: UL 514B, UL Listed: E23237,
| Material: | Malleable Iron |
| Size: | 1-1/2 in |
| Application: | For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures |
| Special Features: | Furnished with locknut; Male hub threads-NPS |
| Connection: | Armored Cable X Flexible Metal Conduit |
| Type: | Conduit Connector |
| Standard: | UL 514B, UL Listed: E23237, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1 |
| Conductor Range: | 0.84 - 1.59 IN |
