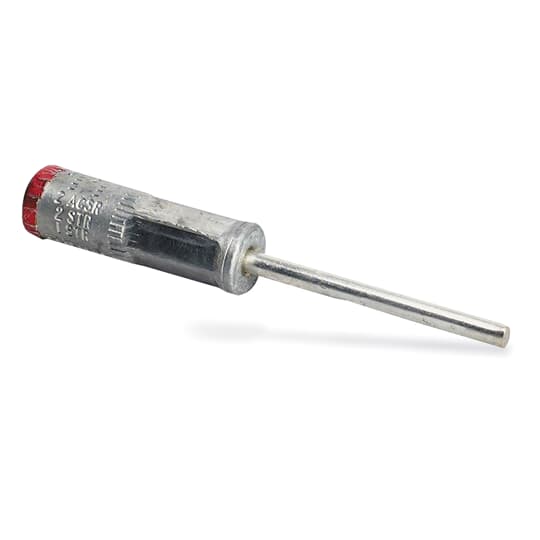

Thomas & Betts Comp Sleeve 1-2 Pigtail 0.258x2.5
Thomas & Betts #:PCS72-6
SKU: ABBIPCS72-6
UPC: 783786071227
SKU: ABBIPCS72-6
UPC: 783786071227
Your Price: $8.68 / EA
Thomas & Betts Comp Sleeve 1-2 Pigtail 0.258x2.5
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
PigTail Compression Sleeve, Contax filled, Conductor Range 2 ACSR, 1 - 2 Stranded, 1/0 Solid, Pigtail #2 .258 inch X 5-3/4 inch Dies 5/8, G, BG, Peach, TU.
| Voltage Rating: | 35 kV |
| Application: | Designed for use in joining Aluminum Secondaries and Services to Copper Transformer Bushings |
| Conductor Size: | #2 ACSR AWG , #1 to #2 STR AWG , 1/0 SOL AWG |
| End Connection: | Compression |
| Finish: | Tinplated Pigtail |
| Insulation: | None |
| Material: | Aluminum Sleeve, Pre-attached Copper Pigtail |
| Mounting: | None |
| Number Of Conductors: | 2 |
| Size: | Sleeve Length 2 inches |
| Special Features: | Sleeves are Highly Conductive Aluminum. Pigtails are Solid Copper, Tin-Plated. Installed with Standard Tools and Dies. Prefilled with Oxide Inhibitor |
| Type: | Pigtail Compression Sleeve |
