O-Z/Gedney COMB LUGS
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product COMB LUGS
Specification Sheet
Warranty
Detailed Description

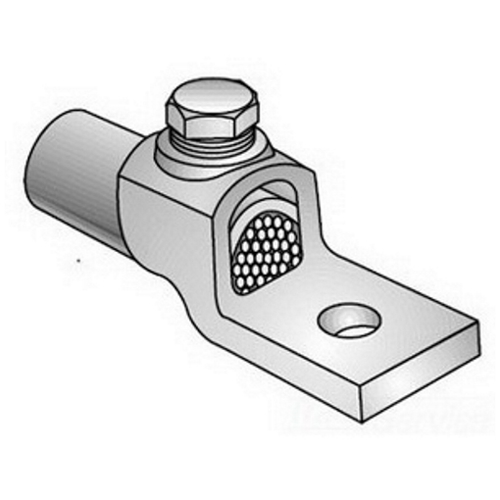

OZ-Gedney Type XLH Combination Lug, 500 - 300 KCMIL Cable, 13/32 IN Stud, 2 Holes, Cast Copper Alloy Body And Brass Screws, Connection: Screw, Dimensions: 1-3/8 IN Length X 3-5/16 IN Width X 2-1/16 IN Height, Third Party Certification: UL File Number E-7512, Applicable Third Party Standards: UL 486A, Federal Specification W-S-610, For Solderless Connector
| Number Of Holes: | 2 |
| Stud Size: | 13/32 IN |
| Cable Size: | 500 - 300 KCMIL |
| Application: | For Solderless Connector |
| Connection: | Screw |
| Material: | Cast Copper Alloy Body And Brass Screws |
| Standard: | Third Party Certification: UL File Number E-7512, Applicable Third Party Standards: UL 486A, Federal Specification W-S-610 |
| Type: | Type XLH Combination Lug |
| Special Features: | Brass or copper alloy pressure plates; Hex head screw; Castings are of high conductivity copper alloy and are designed for high clamping pressure and maximum surface contact for all wires throughout the specified range; Hex head screw; Hex wrench size: 3/ |
