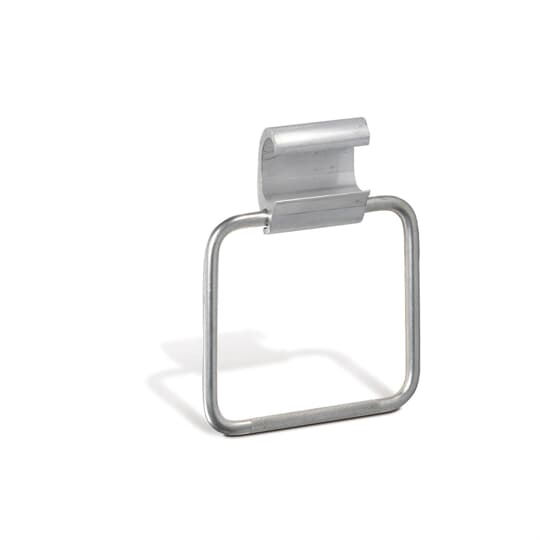

Thomas & Betts Antirot Hotline Stirrups 3/0-4/0 C
Thomas & Betts #:DC 402
SKU: ABBIDC 402
UPC: 783786717248
SKU: ABBIDC 402
UPC: 783786717248
Your Price: $28.81 / EA
Thomas & Betts Antirot Hotline Stirrups 3/0-4/0 C
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Anti-Rotational Hot Line Stirrups - C-type, ACSR 3/0-40, Stranded 3/0-4/0, A width 2-3/4 inch, bail 2, die D.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Size: | Clamp width 2-3/4 inches, Bail #2 |
| Number of Conductors: | 1 |
| Insulation: | None |
| Connection: | Compression |
| Type: | Stirrup Connector |
| Application: | Protect Conductors from Arc and Mechanical Damage where Hot Line Clamps are Used |
| Conductor Range: | 3/0 to 4/0 ACSR AWG , 3/0 to 4/0 STR AWG |
| Environmental Conditions: | Outdoor Use |
| Material: | Aluminum Connector, Copper Bail |
| Finish: | Tin Plated Bail |
| Temperature Rating: | 90 C |
| Special Features: | For Aluminum, AAAC and ACSR Conductors. Oxide Inhibiting Compound |
