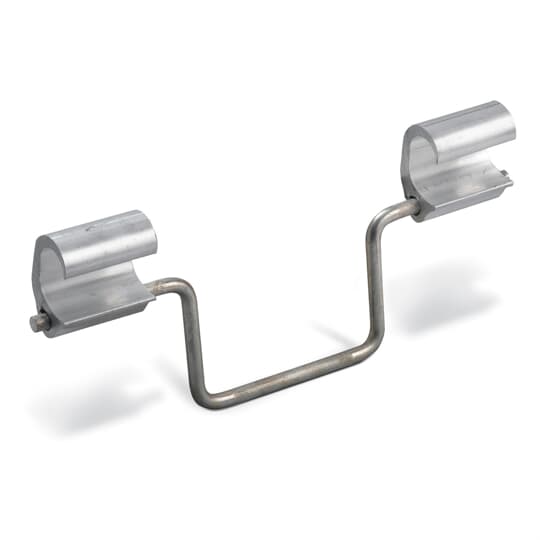

Thomas & Betts Antirot Hotline Stirrup 4 2-3/4in
Thomas & Betts #:OST 42
SKU: ABBIOST 42
UPC: 783786740604
SKU: ABBIOST 42
UPC: 783786740604
Your Price: $35.31 / EA
Thomas & Betts Antirot Hotline Stirrup 4 2-3/4in
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Anti-Rotational Hot Line Stirrups - crank-type, ACSR 4, Stranded 4, Solid 6, width (A) 10, bail 2, length (C) 2-3/4, die O.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Size: | Overall width 10 inches, Bail Depth 2-3/4 inch x 4-1/2 inch length, bail #2 |
| Number of Conductors: | 1 |
| Insulation: | None |
| Connection: | Compression |
| Special Features: | For Aluminum, AAAC and ACSR Conductors |
| Type: | Stirrup Connector |
| Application: | Protect Conductors from Arc and Mechanical Damage where Hot Line Clamps are Used |
| Environmental Conditions: | Outdoor Use |
| Material: | Aluminum Connector, Copper Bail |
| Finish: | Tin Plated Bail |
| Temperature Rating: | 90 C |
| Conductor Range: | #4 ACSR AWG , #4 STR AWG , #6 SOL AWG |
