Thomas & Betts Al Serventr Comp Splice 500-450
Thomas & Betts #:RS4545
SKU: ABBIRS4545
UPC: 783786050536
SKU: ABBIRS4545
UPC: 783786050536
Your Price: $455.48 / EA
Thomas & Betts Al Serventr Comp Splice 500-450
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

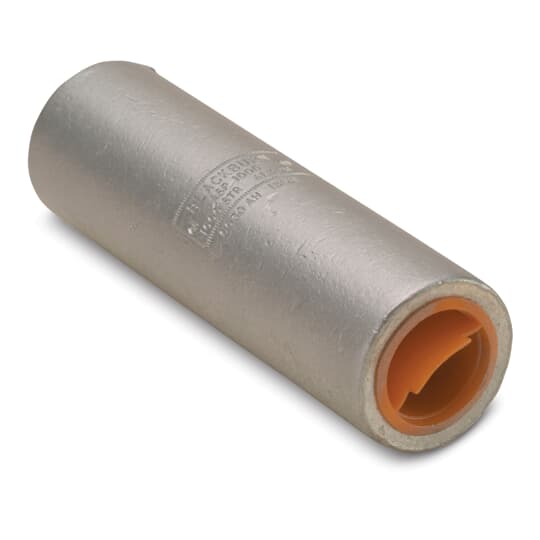

Aluminum 4-1/2 Inch Service Entrance Compression Splice for Wire Range - End A: 500-450 kcmil, End B: 500-450 kcmil, Die: B20AH, 318, 1-5/16 Dual Rated for Aluminum and Copper Conductors
| Material: | Aluminum |
| Connection: | Compression |
| Number Of Conductors: | 2 |
| Insulation: | None |
| Environmental Conditions: | All Seasons / Conditions |
| Mounting: | None |
| Special Features: | Prefilled with Contax |
| Type: | Compression Splice Service Entrance |
| Application: | Non-tension Splice used for Service Entrance on Commercial-Industrial Loads |
| Standard: | Passes the requirements of ANSI C119.4 |
| Conductor Range: | End A: 500 to 450 kcmil , End B: 500 to 450 kcmil |
| Size: | 4-1/2 Inch |
