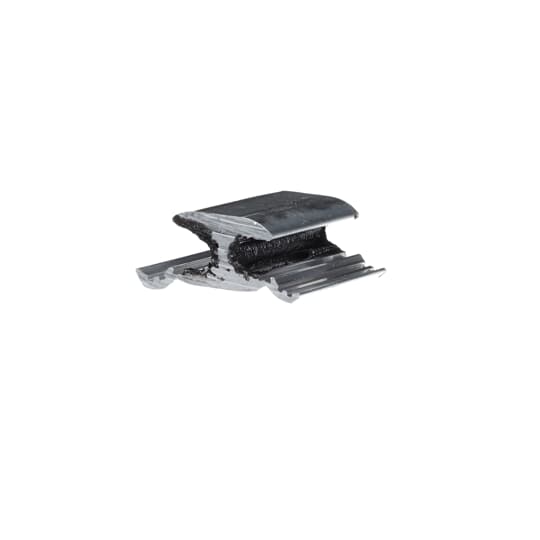

Thomas & Betts Al Htype Comp Conn 2/0-1/0acsr 2-6

Thomas & Betts #:WR189
SKU: ABBIWR189
UPC: 783786103027

Your Price: $1.48 / EA

Add to List

If you would like to purchase a large amount and would like a custom quote, you can add build a quote

Ask about this product
Specification Sheet

Detailed Description

Aluminum H-Tap Connector, Wide Range, Conductor Range Main ACSR 1/0-3, Stranded 2/0-2, Solid 3/0-1, TAP ACSR 2-6, Stranded 1-6, Solid 1/0-6, Die O

Material:	Aluminum
Number Of Conductors:	2
Connection:	Compression
Insulation:	None
Application:	For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Environmental Conditions:	All Seasons / Conditions
Mounting:	None
Special Features:	Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conduct
Standard:	RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating:	up to 90 C
Type:	H-Type Compression Tap Connector
Size:	Length 1-11/16 inch
Wire Size:	Main: 1/0 to #3 ACSR or 2/0 to #2 STR or 3/0 to #1 SOL AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWG
