Thomas & Betts Al Htype Comp Conn 2-6acsr 2-6
Thomas & Betts #:WR159
SKU: ABBIWR159
UPC: 783786100019
SKU: ABBIWR159
UPC: 783786100019
Your Price: $1.44 / EA
Thomas & Betts Al Htype Comp Conn 2-6acsr 2-6
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

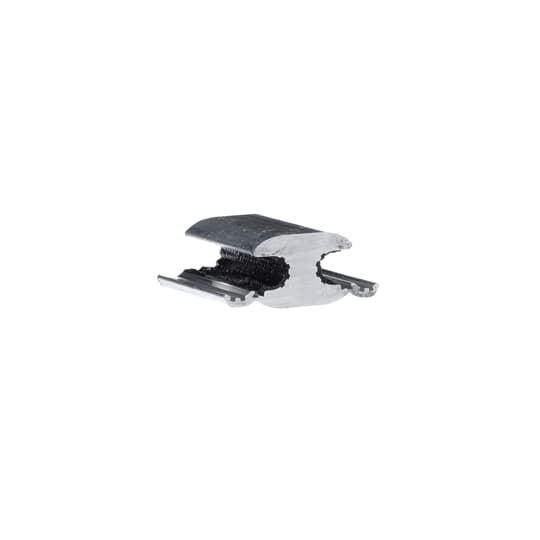

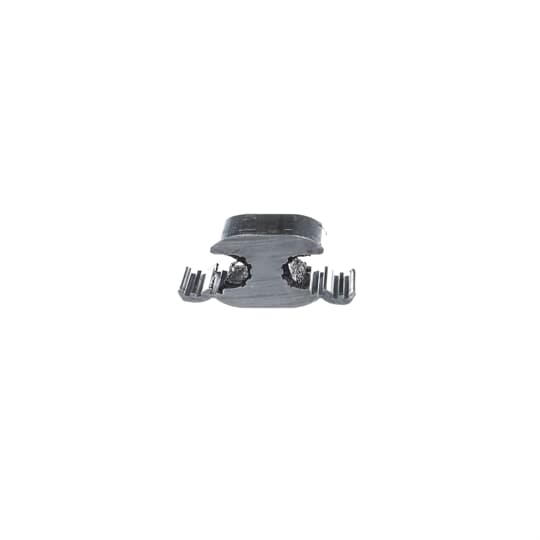

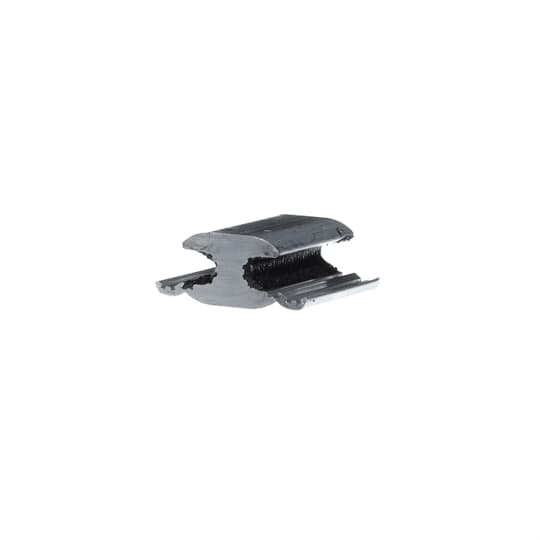

Aluminum H-Tap Connector, Wide Range, Conductor Range Main ACSR 2-6, Stranded 1-6, Solid 2-6, TAP ACSR 2-6, Stranded 1-6, Solid 2-6, Die O
| Material: | Aluminum |
| Number Of Conductors: | 2 |
| Connection: | Compression |
| Insulation: | None |
| Application: | For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors |
| Environmental Conditions: | All Seasons / Conditions |
| Mounting: | None |
| Special Features: | Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conduct |
| Standard: | RUS Accepted. Complies with ANSI C119.4 Specifications |
| Temperature Rating: | up to 90 C |
| Type: | H-Type Compression Tap Connector |
| Size: | Length 1-7/16 inch |
| Wire Size: | Main: #2 to #6 ACSR or #1 to #6 STR or #2 to #6 SOL AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or #2 to #6 SOL AWG |
