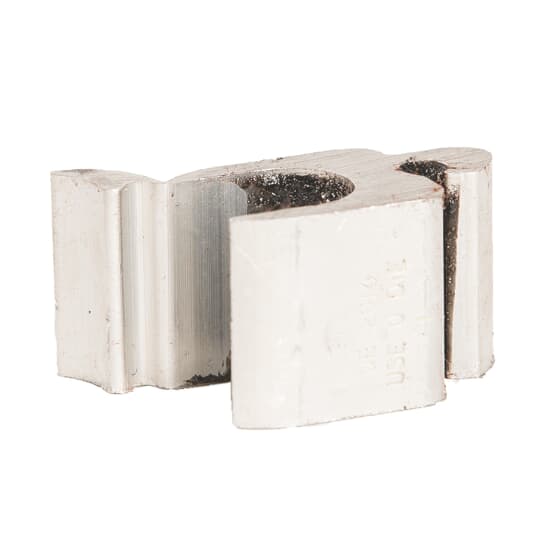

Thomas & Betts Al H Type Comp Tap 2-6 Str 8-12 Str
Thomas & Betts #:UB 212
SKU: ABBIUB 212
UPC: 783786754588
SKU: ABBIUB 212
UPC: 783786754588
Your Price: $1.33 / EA
Thomas & Betts Al H Type Comp Tap 2-6 Str 8-12 Str
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Aluminum H Type Compression Tap. Wire Range Groove A. 2-6 Stranded, 2-6 ACSR, 1-6 Solid. Groove B 8-12 Stranded, 6-10 Solid. .750 inch x .730 inch x .560 inch high. Groove Diameters of .304 and .176 inch. Not Tin-Plated.
| Material: | Aluminum |
| Number Of Conductors: | 2 |
| Connection: | Compression |
| Insulation: | None |
| Type: | H-Type Compression Tap Connector |
| Finish: | Bare |
| Size: | .750 inch x .730 inch x .560 inch high |
| Wire Size: | Groove A: #2 to #6 STR or #2 to #6 ACSR or #1 to #6 SOL AWG , Groove B: #8 to #12 STR or #6 to #10 SOL AWG |
