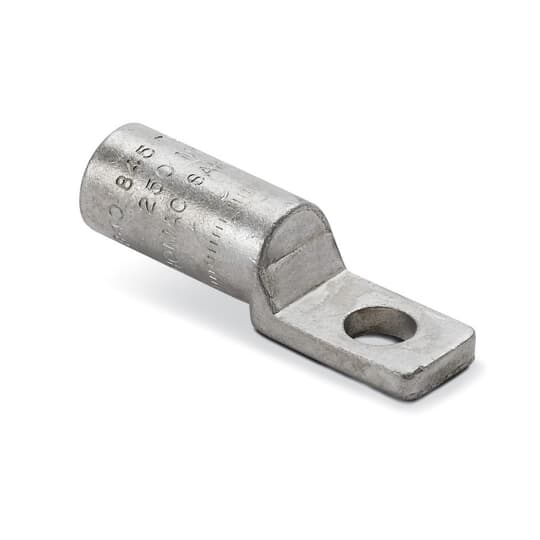

Thomas & Betts Al Comp Lug 1 Hole Meter Socket 6
Thomas & Betts #:SAKM 6-48 TN
SKU: ABBISAKM 6-48 TN
UPC: 783786748334
SKU: ABBISAKM 6-48 TN
UPC: 783786748334
Your Price: $16.03 / EA
Thomas & Betts Al Comp Lug 1 Hole Meter Socket 6
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Tin Plated Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #6 Stranded - Compressed, #6 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors
| Material: | Aluminum |
| Finish: | Tin Plated |
| Connection: | Compression |
| Insulation: | None |
| Standard: | ANSI C119.4 |
| Application: | For Meter Pan and General Applications |
| Wire Size: | #6 STR AWG , #6 COMPR AWG , #6 COMPT AWG |
| Type: | Compression Lug One Hole Meter Socket |
| Special Features: | Marked with Conductor Sizes and Die References |
| Size: | 3-1/4 inch |
