Your Price: $19.52 / EA
Thomas & Betts Al 2hol Nema Lug Str 2-1
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

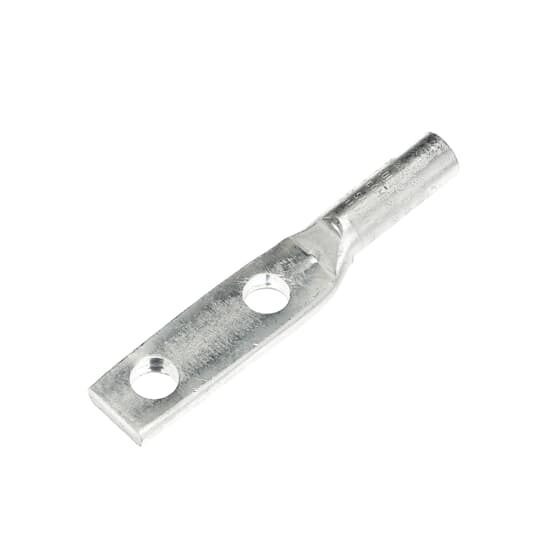

Aluminum Two-Hole NEMA Lugs - straight lug, 1/0 Solid, #2 AXSR, #2 - #1 Stranded, #1 Compressed - Compact. Installing dies TU, 52, BG, 243, 5/8, CSA22, 620. Length 5-3/16 inch. Pad 1 inch wide x 3-1/8 inch long x 5/16 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-1316 inch. Oxide Inhibitor. Red Cap. Dual Rated for Aluminum and Copper Conductors
| Material: | Aluminum |
| Connection: | Compression |
| Application: | Designed for general applications and for installation on Homac 125 series insulated buses |
| Special Features: | Entire conductor range installed by four dies. Lessens your die inventory. Dual-Rated for use with Aluminumand Copper Conductors. Made of Aluminum for high strength and high conductivity. Prefilled with Oxide Inhibitor to Prevent Oxidation and keep out |
| Standard: | ANSI C119.4 |
| Type: | Compression Lug Two Hole |
| Wire Size: | #1 to #2 STR AWG , #1 COMPR/COMPT AWG , 1/0 SOL AWG , #2 ACSR AWG |
| Size: | 5-3/16 x 1 inch wide |
