Your Price: $5.61 / EA

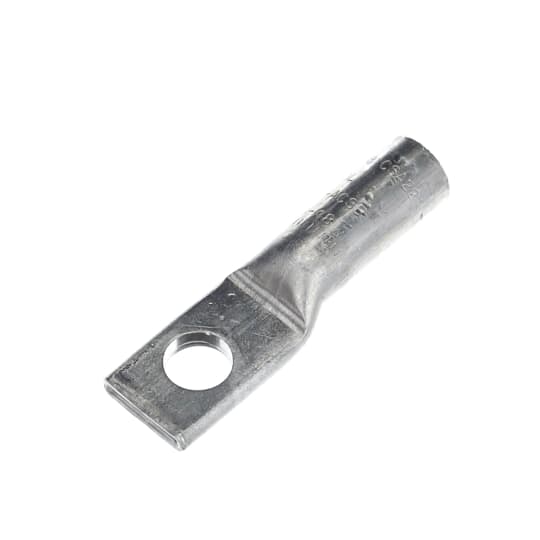

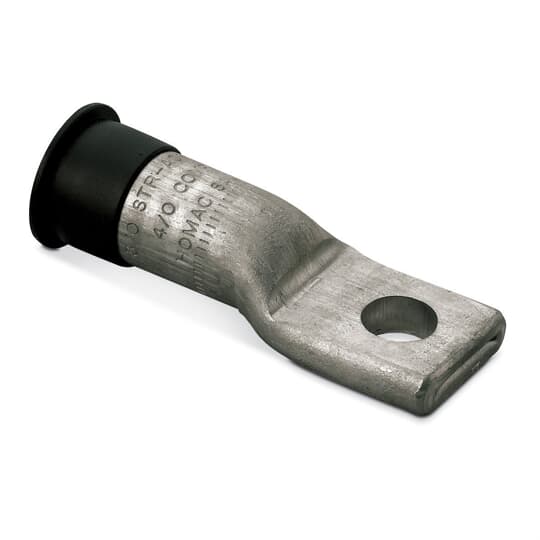

Thomas & Betts Al 1hole Lug Str Die 4
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Aluminum One-Hole Lugs - Common Die Series - Straight Lug, Wire Range #2 Solid, #4 Stranded - Compressed - ACSR. Installing Dies TU, 52, BG, 243, 5/8, CSA 22. Length 3-1/8 inch. Pad 55/64 inch wide x 1-5/16 inch long x 13/63 inch thick. (1) 17/32 inch Diameter hole. Barrel 1-19/64 inch. Oxide Inhibitor. Orange Cap. For Use with 1/2 inch Bolt. Dual Rated for Aluminum and Copper Conductors
| Material: | Aluminum |
| Connection: | Compression |
| Type: | Compression Lug One Hole |
| Application: | Designed for general applications and for installation on Homac 125 series insulated buses |
| Special Features: | Entire conductor range installed by four dies. Lessens your die inventory. Dual-Rated for use with Aluminumand Copper Conductors. Made of Aluminum for high strength and high conductivity. Prefilled with Oxide Inhibitor to Prevent Oxidation and keep out |
| Standard: | ANSI C119.4 |
| Wire Size: | #4 STR AWG , #4 COMPR AWG , #4 COMPT AWG , #2 SOL AWG , #4 ACSR AWG |
| Size: | 3-1/8 x 7/8 inch wide |
