Your Price: $85.71 / EA

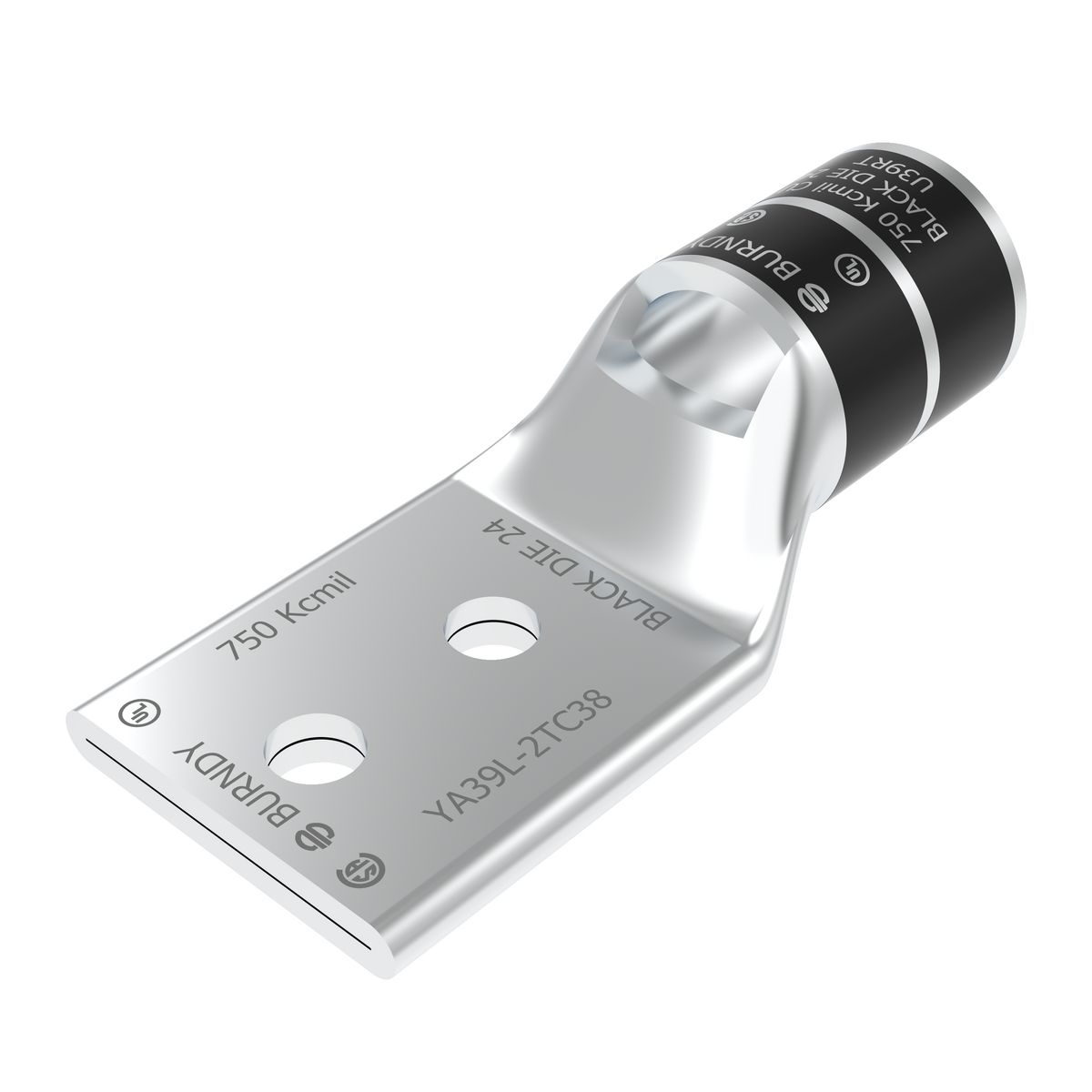

Burndy 750MCM 2-H 3/8STUD
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 750MCM 2-H 3/8STUD
Specification Sheet
Detailed Description
750 kcmil CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, Black Color Code, 24 Die Index.
| Material: | Copper |
| Application: | Wire Termination |
| Standard: | UL 486A-486B |
| Voltage Rating: | 35 kV |
| Type: | Standard Barrel, Tin Plated |
| Color Code: | Black |
| Special Features: | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-15/16 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 24, Tools, Die Set Catalog Number, And (number |
