Your Price: $2.23 / EA

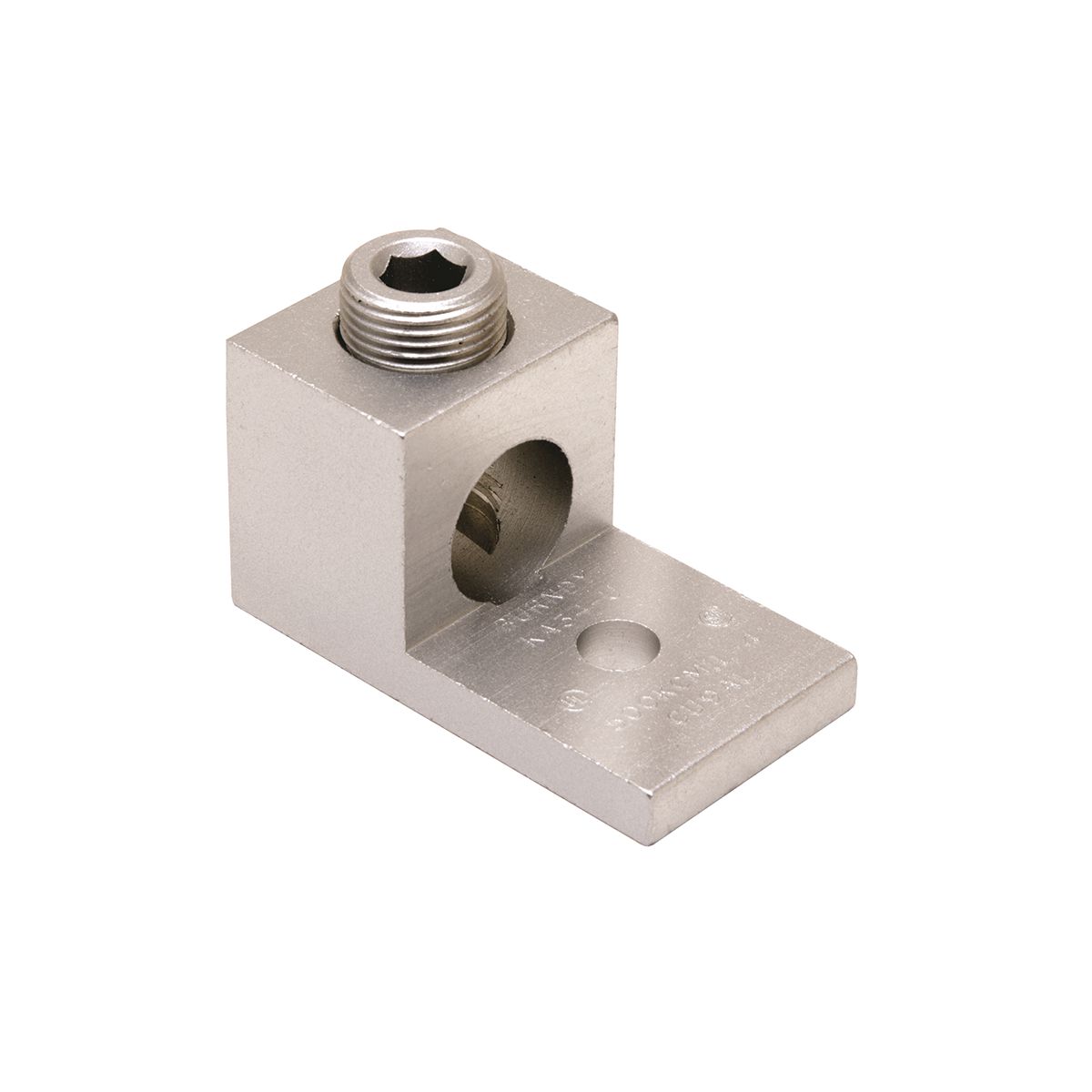

Burndy 6STR-2/0STR DUAL RATED
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
6STR-2/0STR DUAL RATED
Specification Sheet
Detailed Description
Aluminum Universal Terminal, 1 Hole, 6-2/0 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated.
| EU RoHS Indicator: | Yes |
| Physical Attribute - Screw Type: | Allen |
| Material - Hardware: | Aluminum |
| Dimension - Hole Size inch: | 0.27 in |
| Dimension - Height fraction: | 4/5 in |
| Standard: | UL 486A-486B |
| Type: | Bolted Lugs & Terminals |
| Material: | Aluminum |
| Temperature Rating: | 194 |
| Number of Conductors: | 1 |
| Number of Conductors/Ports (Main/Primary): | 1 |
| Application: | For Aluminum And Copper Conductors |
| Special Features: | Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 1/4 IN, Set Screw Type: Allen Key, Length: 1.47 IN, Installation Torque: 120 IN- |
